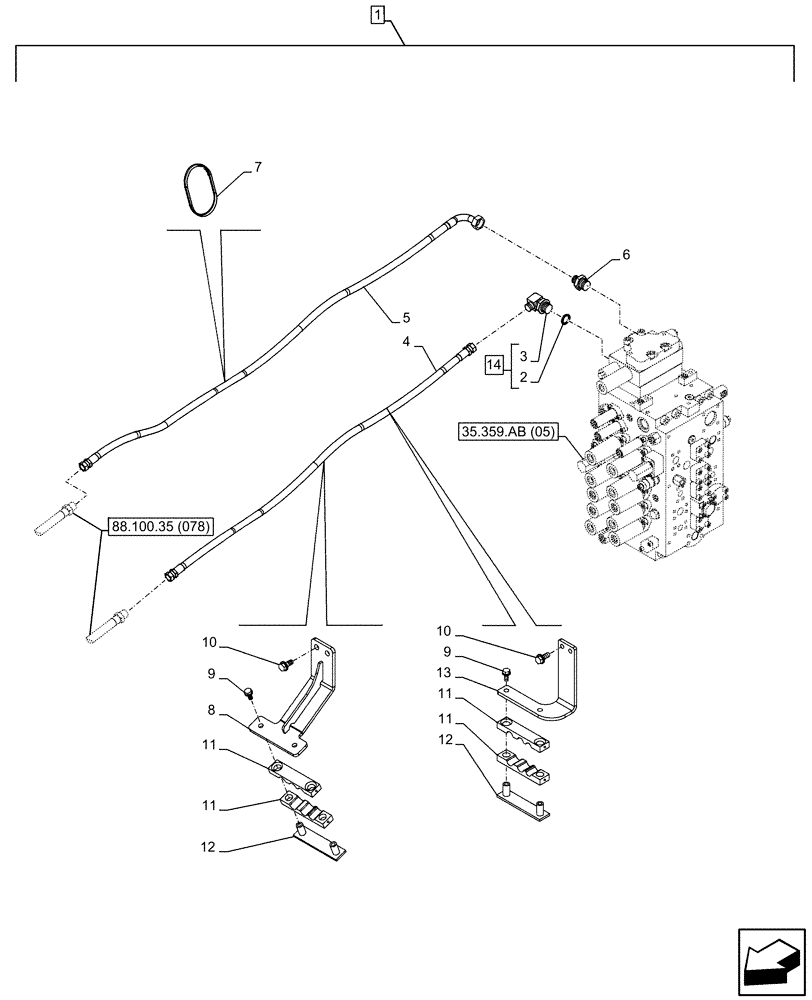

Запчасти Case CX300D LC (88.100.35[093]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE (88) - ACCESSORIES

1

KG1BP521-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

154503A1

O-RING

1шт.

3

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 14

1шт.

4

KBJ23460

HYDRAULIC HOSE

12mm x 1550mm

1шт.

5

KBJ23470

HYDRAULIC HOSE

12mm x 1700mm

1шт.

6

168988A1

ADAPTER

1шт.

7

150496A1

MOUNTING CLIP

250mm

3шт.

8

KBJ25370

BRACKET

1шт.

9

166052A1

BOLT

M10 x 25mm

4шт.

10

166352A1

BOLT

M12 x 30mm

4шт.

11

KRJ11580

HOSE CLIP

4шт.

12

KRJ11590

SUPPORT

2шт.

13

KBJ25380

BRACKET

1шт.

14

157936A1

ELBOW

ASSY, Incl 2, 3

1шт.
