(88.100.35[086]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE, SPEED SENSOR

Запчасти Case CX300D LC (88.100.35[086]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE, SPEED SENSOR (88) - ACCESSORIES

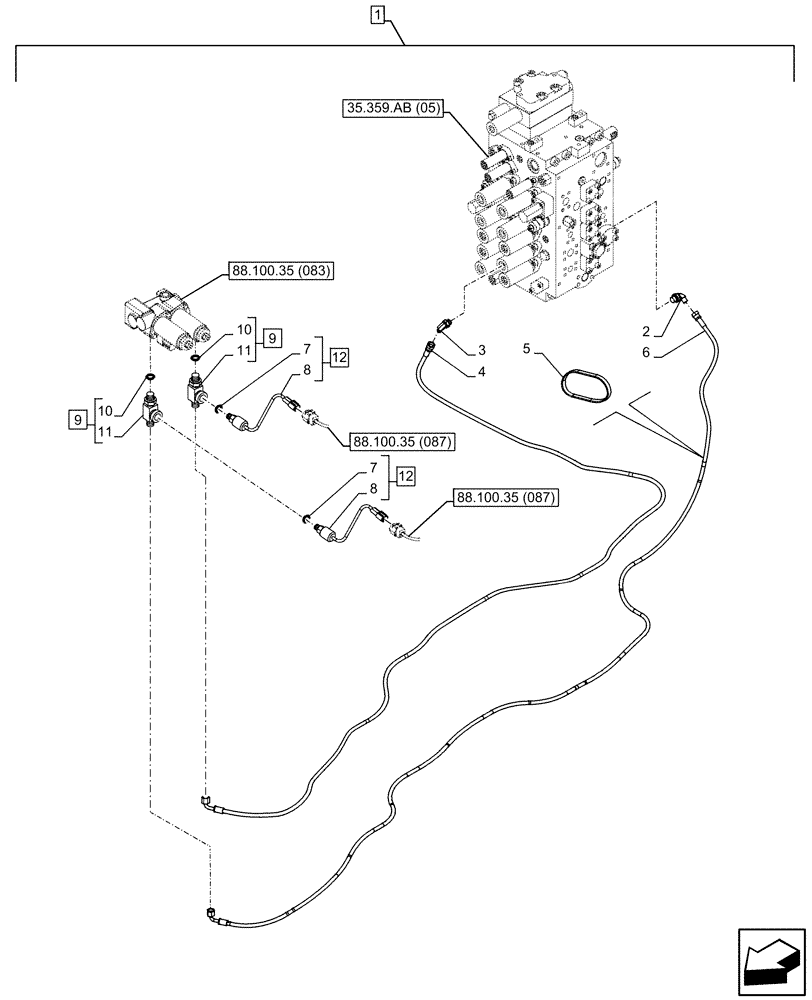

Схема запчастей Case CX300D LC - (88.100.35[086]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE, SPEED SENSOR (88) - ACCESSORIES
12
88.100.35 (087)
5
7
10
10
3
4
7
12
88.100.35 (087)
8
11
9
8
11
35.359.ab (05)
6
1
88.100.35 (083)
2
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP521-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ28580

ELBOW

G1/4" x G1/4"

1шт.

3

KHJ28630

ELBOW

G1/4" x G1/4"

1шт.

4

KHJ14800

HYDRAULIC HOSE

6mm x 4300mm

1шт.

5

150496A1

MOUNTING CLIP

250mm

2шт.

6

KHJ12240

HOSE

6mm x 3750mm

1шт.

7

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

8

NSS

NOT SOLD SEPARAT

Pressure Switch, Incl in 12

2шт.

9

167666A1

FITTING

ASSY, Incl 10, 11

2шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

2шт.

12

KHR21490

PRESSURE SWITCH

ASSY, Incl 7, 8

2шт.
