(88.100.35[078]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE

Запчасти Case CX300D LC (88.100.35[078]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

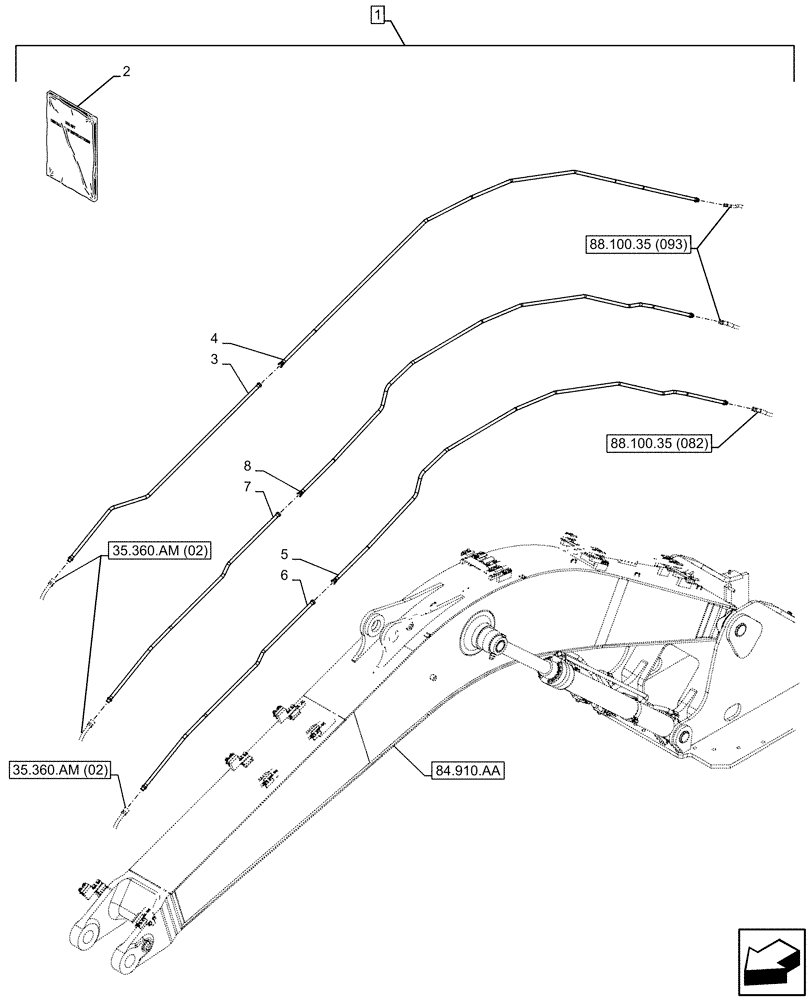

Схема запчастей Case CX300D LC - (88.100.35[078]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES
84.910.aa
7
6
88.100.35 (093)
8
35.360.am (02)
88.100.35 (082)
3
2
35.360.am (02)
1
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP521-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47789417

INSTRUCTION

1шт.

2

47789452

INSTRUCTION

1шт.

3

KBV32440

PIPE

RH

1шт.

4

KBV35760

PIPE

RH

1шт.

5

KBV35770

PIPE

LH

1шт.

6

KBV32450

PIPE

LH

1шт.

7

KBV32430

PIPE

1шт.

8

KBV35750

PIPE

1шт.

Выбрано товаров: 10
