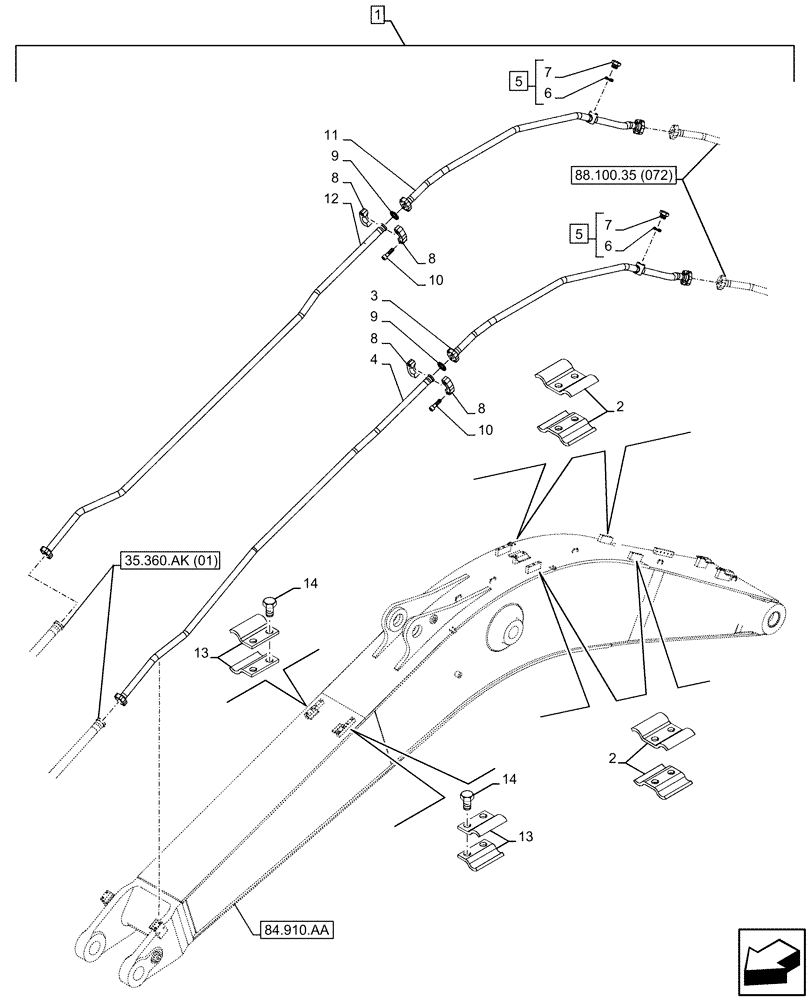

Запчасти Case CX300D LC (88.100.35[073]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

1

KG1BP518-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHV11050

COLLAR CLAMP

8шт.

3

KBV37650

TUBE

42.7mm ID x 2143mm, LH

1шт.

4

KBV32410

PIPE

42.7mm ID x 3237mm, LH

1шт.

5

152924A1

PLUG

ASSY, Incl 6, 7

2шт.

6

154503A1

O-RING

2шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 5

2шт.

8

150124A1

FLANGE

4шт.

9

164450A1

O-RING

2шт.

10

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

8шт.

11

KBV37660

TUBE

42.7mm ID x 2143mm, RH

1шт.

12

KBV32420

PIPE

42.7mm ID x 3237mm, RH

1шт.

13

KHV11060

COLLAR CLAMP

4шт.

14

166352A1

BOLT

M12 x 30mm

4шт.
