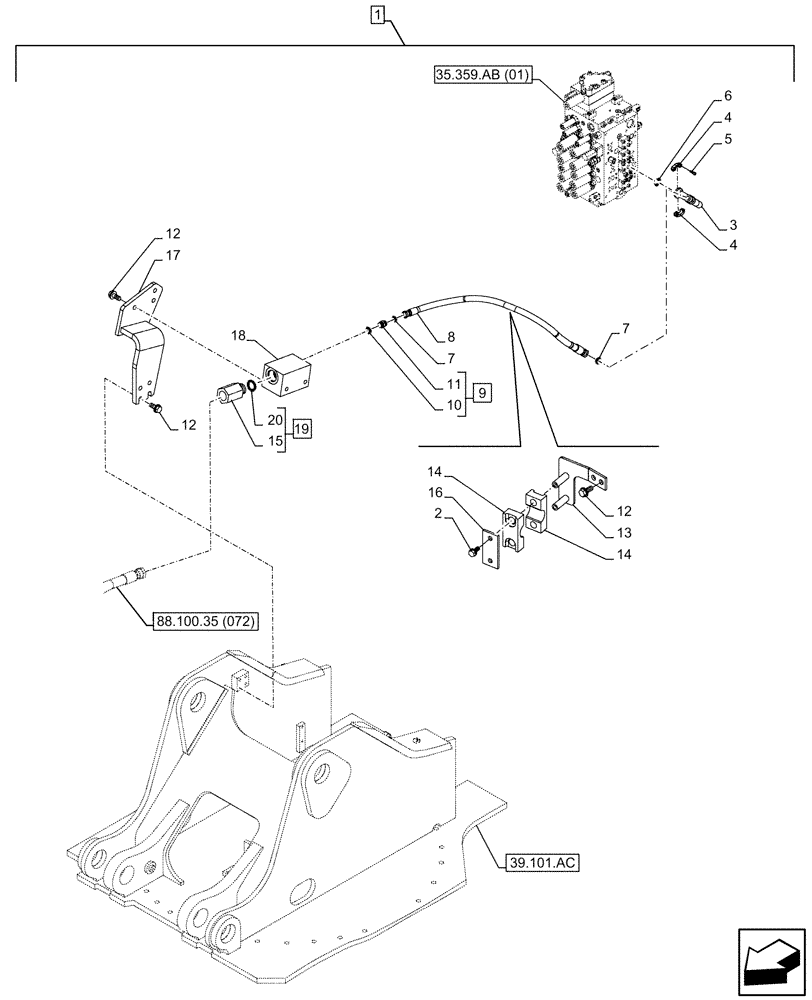

Запчасти Case CX300D LC (88.100.35[071]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

1

KG1BP518-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 20

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

166052A1

BOLT

M10 x 25mm

2шт.

3

KBJ20180

TUBE

1шт.

4

150124A1

FLANGE

2шт.

5

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

6

155211A1

O-RING

1шт.

7

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

8

KSJ13320

HOSE ASSY.

Manifold Valve to Control Valve B2 Port, 25.4mm ID x 1500mm

1шт.

9

KHJ1349

ADAPTER

ASSY, Incl 10, 11

1шт.

10

154523A1

O-RING

1шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

12

166352A1

BOLT

M12 x 30mm

8шт.

13

KBJ23700

BRACKET

1шт.

14

KRJ11450

HOSE CLIP

2шт.

15

NSS

NOT SOLD SEPARAT

Socket, Incl in 19

1шт.

16

KRJ10800

PLATE

1шт.

17

KBJ16300

BRACKET, SUPPORTING

1шт.

18

KRJ12170

MANIFOLD VALVE

1шт.

19

KHJ25900

SOCKET

ASSY, Incl 15, 20

1шт.

20

152211A1

O-RING

1шт.
