(10.202.AB[02]) - VAR - 488031 - AIR CLEANER, CYCLONE TYPE

Запчасти Case CX300D LC (10.202.AB[02]) - VAR - 488031 - AIR CLEANER, CYCLONE TYPE (10) - ENGINE

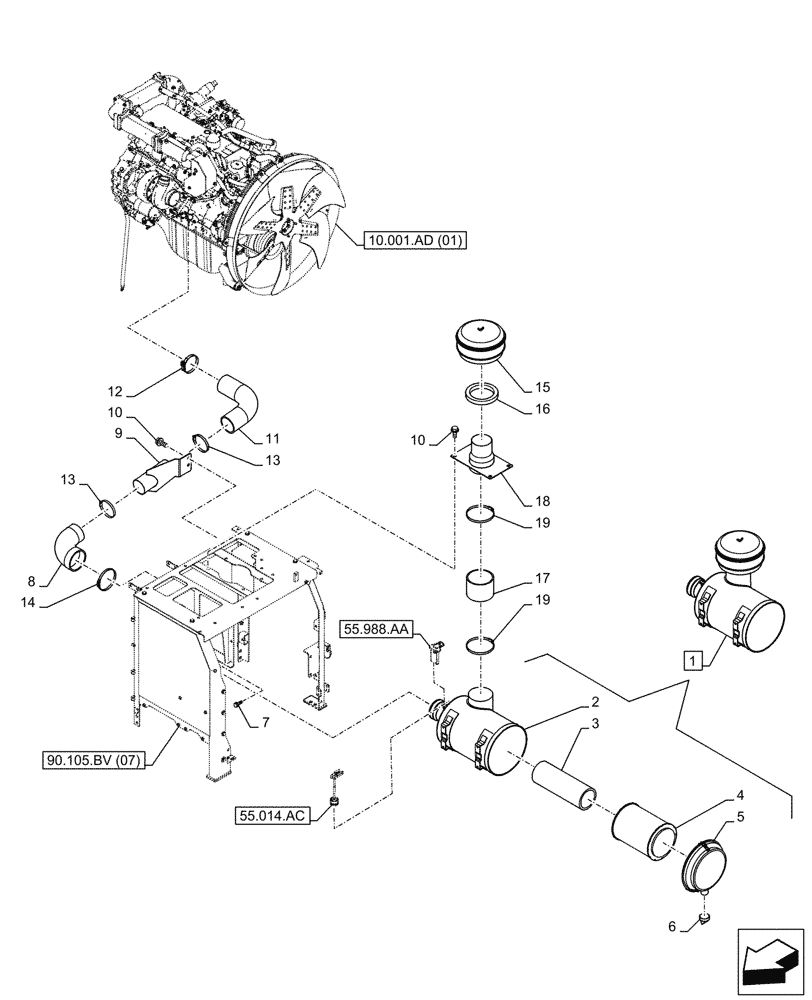

Схема запчастей Case CX300D LC - (10.202.AB[02]) - VAR - 488031 - AIR CLEANER, CYCLONE TYPE (10) - ENGINE
90.105.bv (07)
8
5
11
18
1
13
9
10
13
7
19
17
4
10
19
2
15
16
14
6
12
3
10.001.ad (01)
55.988.aa
55.014.ac
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBH14830

FILTER ASSY

ASSY, Incl 2 - 6, Serial Range: -C0257

1шт.

See also Figure 55.014.AC

1шт.

1

KBH14831

FILTER ASSY

ASSY, Incl 2 - 6, Start Serial: D0257

1шт.

See also Figure 55.014.AC

1шт.

2

KBH14980

HOUSING

, Serial Range: -C0257

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Incl in 1, Start Serial: D0257

1шт.

3

KSH0932

AIR FILTER

Air Cleaner, Secondary

1шт.

4

KSH0933

AIR FILTER

Air Cleaner, Primary

1шт.

5

KSH0934

COVER

1шт.

6

KBH0924

VALVE

1шт.

7

166347A1

BOLT,Sems, M10 x 30mm

4шт.

8

KSH14270

HOSE

1шт.

9

KBH15090

BRACKET

1шт.

10

166352A1

BOLT

6шт.

11

KBH14180

AIR HOSE

1шт.

12

KHH13540

CLAMP

1шт.

13

KHJ33120

HOSE CLAMP

1шт.

14

KHJ33130

HOSE CLAMP

1шт.

15

KHH13120

FILTER ASSY

1шт.

16

KSH12930

SEAL

1шт.

17

KBH15100

INTAKE AIR HOSE

1шт.

18

KSH12920

PIPE

1шт.

19

KHJ33140

HOSE CLAMP

2шт.
