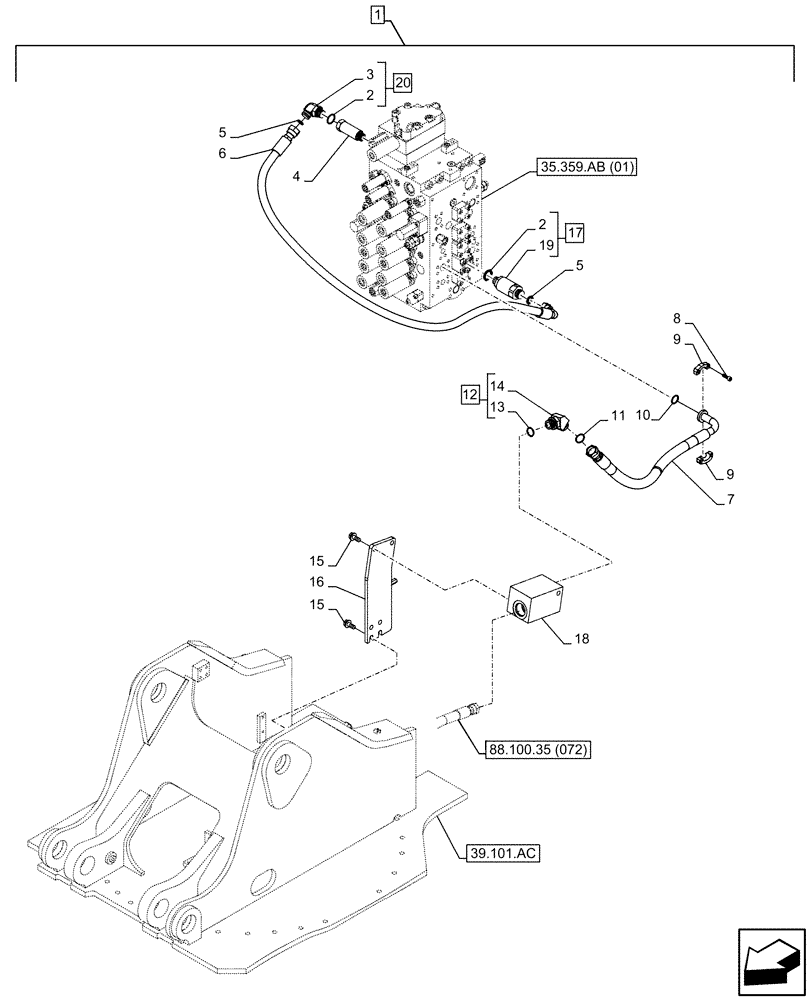

Запчасти Case CX300D LC (88.100.35[070]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

1

KG1BP518-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 20

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

154503A1

O-RING

2шт.

3

NSS

NOT SOLD SEPARAT

Elbow, Incl in 20

1шт.

4

KHJ26310

STUD

1шт.

5

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

6

KBJ12520

HYDRAULIC HOSE,19.00 mm ID x 1250.00 mm

Control Valve P3 Port to Control Valve P4 Port,

1шт.

7

KBJ23800

HYDRAULIC HOSE

Manifold Valve to Control Valve A2 Port, 24mm ID x 1000mm

1шт.

8

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

9

153459A1

FLANGE

2шт.

10

155211A1

O-RING

1шт.

11

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

12

KHJ11370

ELBOW

ASSY, Incl 13, 14

1шт.

13

154523A1

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 12

1шт.

15

166352A1

BOLT

M12 x 30mm

6шт.

16

KRJ11470

SUPPORT

1шт.

17

KHJ10480

VALVE SECTION

ASSY, Incl 2 (Qty 1), 19

1шт.

18

KRJ12170

MANIFOLD VALVE

1шт.

19

NSS

NOT SOLD SEPARAT

Relief Valve, Incl in 17

1шт.

20

KHJ1804

ELBOW

ASSY, Incl 2 (Qty 1), 3

1шт.
