/ / / / / / / / (88.100.35[064]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, PRESSURE RELIEF VALVE, COMPONENTS
Запчасти Case CX300D LC (88.100.35[064]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, PRESSURE RELIEF VALVE, COMPONENTS (88) - ACCESSORIES

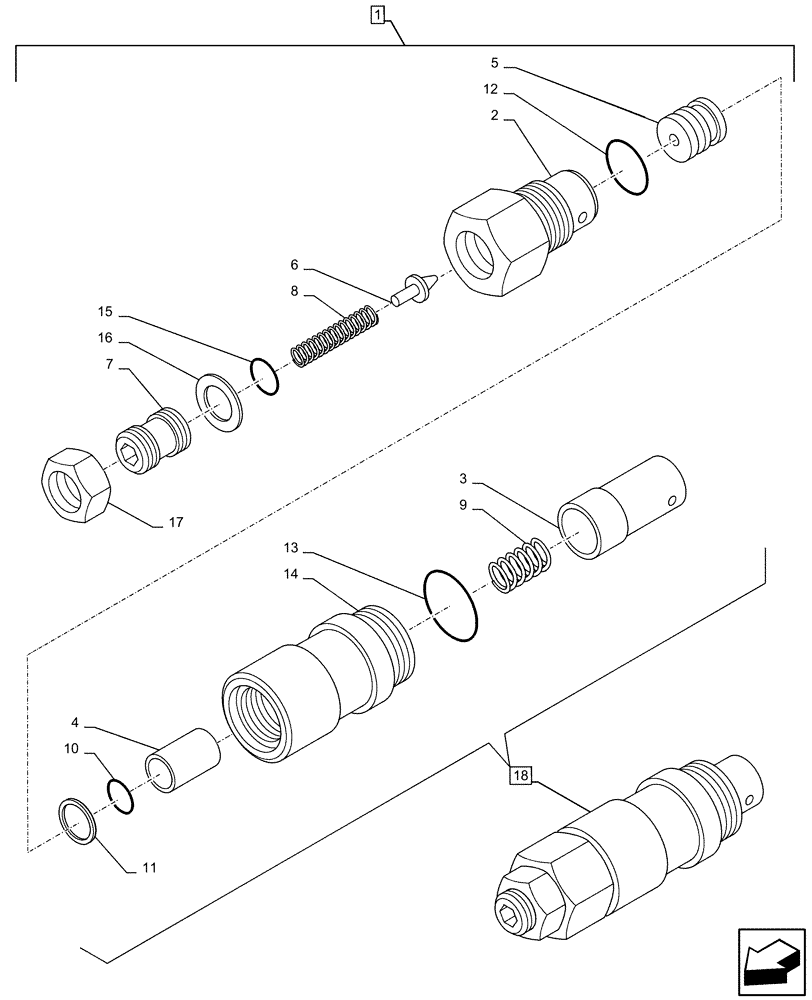

![Схема запчастей Case CX300D LC - (88.100.35[064]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, PRESSURE RELIEF VALVE, COMPONENTS (88) - ACCESSORIES](https://partsell.ru/storage/images/casece/5397160.png)
5
10
11
16
8
6
2
13
1
15
18
9
4
7
17
3
14
12
1
KG1BP518-00
CONSTRUCTION DIA
Double Acting Circuit, Incl 2 - 18
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
2
NSS
NOT SOLD SEPARAT
Valve, Incl in 18
1шт.
3
NSS
NOT SOLD SEPARAT
Sleeve, Incl in 18
1шт.
4
NSS
NOT SOLD SEPARAT
Spacer, Incl in 18
1шт.
5
NSS
NOT SOLD SEPARAT
Poppet, Incl in 18
1шт.
6
NSS
NOT SOLD SEPARAT
Poppet, Incl in 18
1шт.
7
NSS
NOT SOLD SEPARAT
Adjuster, Incl in 18
1шт.
8
NSS
NOT SOLD SEPARAT
Spring, Incl in 18
1шт.
9
NSS
NOT SOLD SEPARAT
Spring, Incl in 18
1шт.
10
154463A1
O-RING
1шт.
11
164905A1
BACK-UP RING
1шт.
12
159976A1
O-RING
1шт.
13
155223A1
O-RING
1шт.
14
NSS
NOT SOLD SEPARAT
Body, Incl in 18
1шт.
15
159977A1
O-RING
1шт.
16
159979A1
BACK-UP RING
1шт.
17
NSS
NOT SOLD SEPARAT
Nut, Incl in 18
1шт.
18
155745A1
VALVE PRESSURE RELIE
ASSY, Incl 2 - 17
1шт.
