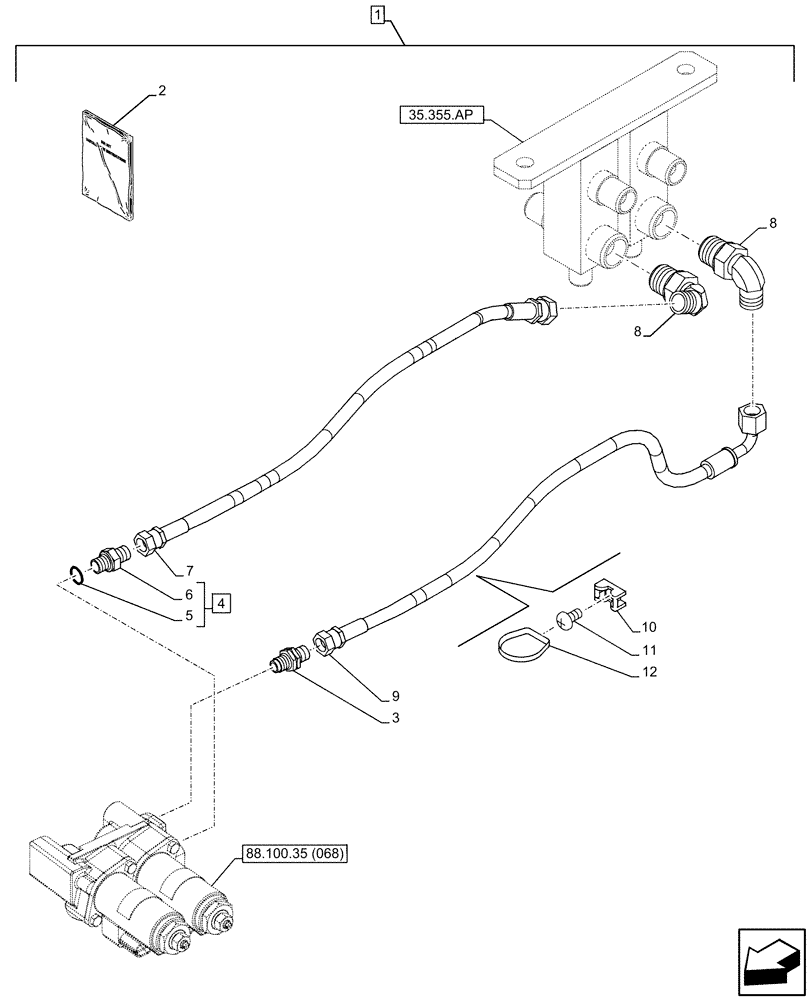

Запчасти Case CX300D LC (88.100.35[062]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE (88) - ACCESSORIES

1

KG1BP518-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47789441

INSTRUCTION

1шт.

3

161841A1

HYD CONNECTOR

G1/4" x G1/4"

1шт.

4

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 5, 6

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

7

KHJ2050

HOSE,6.3mm ID x 1000mm L

Proportional Control Valve T Port to Hydraulic Manifold T5 Port

1шт.

8

KHJ28580

ELBOW

2шт.

9

KHJ2092

HOSE

Proportional Control Valve P Port to Hydraulic Manifold P5 Port, 6mm ID x 1100mm

1шт.

10

150860A1

COLLAR

4шт.

11

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

4шт.

12

150496A1

MOUNTING CLIP

L=250mm

4шт.
