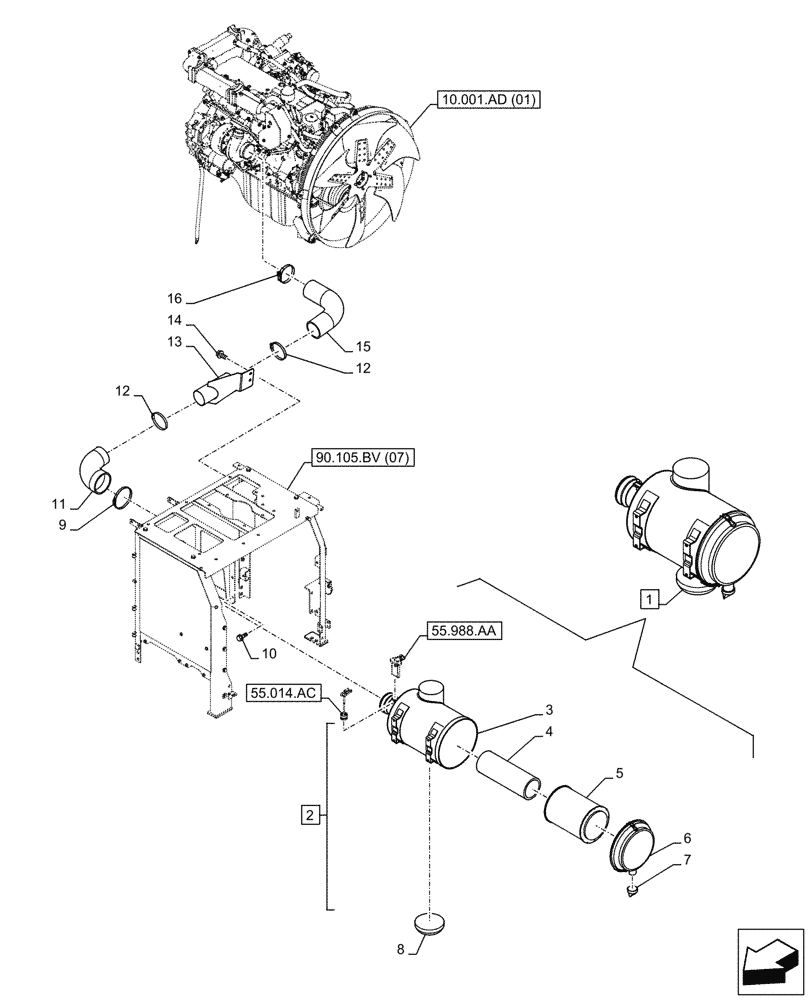

Запчасти Case CX300D LC (10.202.AB[01]) - AIR CLEANER (10) - ENGINE

1

KBH14820

ASSY, Incl 2 - 8, Serial Range: -C0256

1шт.

See also figure 55.014.AC

1шт.

1

KBH14821

AIR CLEANER

ASSY, Incl 2 - 8, Start Serial: D0256

1шт.

See also figure 55.014.AC

1шт.

2

KBH15360

FILTER ASSY

ASSY, Incl 3 - 7, Serial Range: -C0256

1шт.

2

KBH15361

AIR CLEANER

ASSY, Incl 3 - 7, Start Serial: D0256

1шт.

3

KBH14970

HOUSING

, Serial Range: -C0256

1шт.

3

NSS

NOT SOLD SEPARAT

Housing, Incl in 1, Start Serial: D0256

1шт.

4

KSH0932

AIR FILTER

Air Cleaner, Secondary

1шт.

5

KSH0933

AIR FILTER

Air Cleaner, Primary

1шт.

6

KSH0934

COVER

1шт.

7

KBH0924

VALVE

1шт.

8

166564A1

CAP

1шт.

9

KHJ33130

HOSE CLAMP

1шт.

10

166347A1

BOLT,Sems, M10 x 30mm

4шт.

11

KSH14270

HOSE

1шт.

12

KHJ33120

HOSE CLAMP

2шт.

13

KBH15090

BRACKET

1шт.

14

166352A1

BOLT

2шт.

15

KBH14180

AIR HOSE

1шт.

16

KHH13540

CLAMP

1шт.
