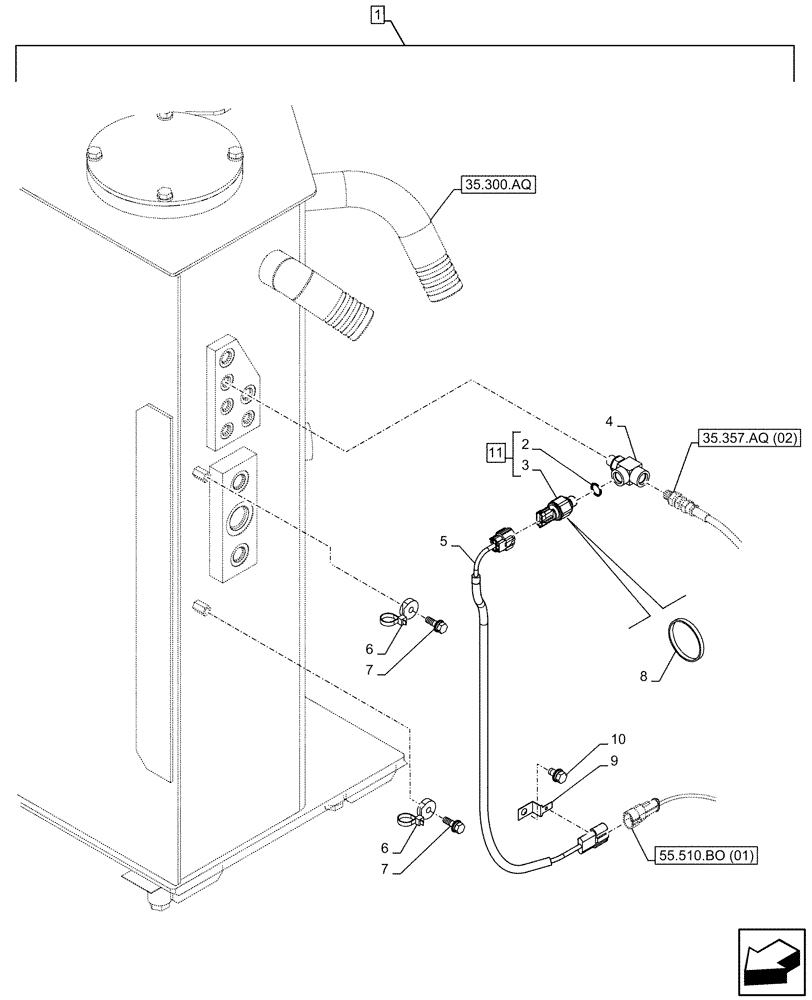

Запчасти Case CX300D LC (88.100.35[036]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, PRESSURE SWITCH (88) - ACCESSORIES

1

KG1BP512-00

CONSTRUCTION DIA

Breaker Circuit Proportional Control Kit, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

NSS

NOT SOLD SEPARAT

Pressure Sensor, 1MPa, G1/4", Incl in 11

1шт.

4

KHJ12530

TEE

G1/4"

1шт.

5

KHR33580

HARNESS

1шт.

6

KHR2584

CLAMP

2шт.

7

KHJ1215

BOLT,Spcl

M8 x 25mm

2шт.

8

150496A1

MOUNTING CLIP

L=250mm

1шт.

9

158962A1

CLIP

1шт.

10

167518A1

BOLT

M8 x 16mm

1шт.

11

KHR32870

SENSOR

ASSY, Incl 2, 3

1шт.
