(88.100.35[022]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, FOOT CONTROL VALVE, LINE, PRESSURE RELIEF VALVE, SENSOR

Запчасти Case CX300D LC (88.100.35[022]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, FOOT CONTROL VALVE, LINE, PRESSURE RELIEF VALVE, SENSOR (88) - ACCESSORIES

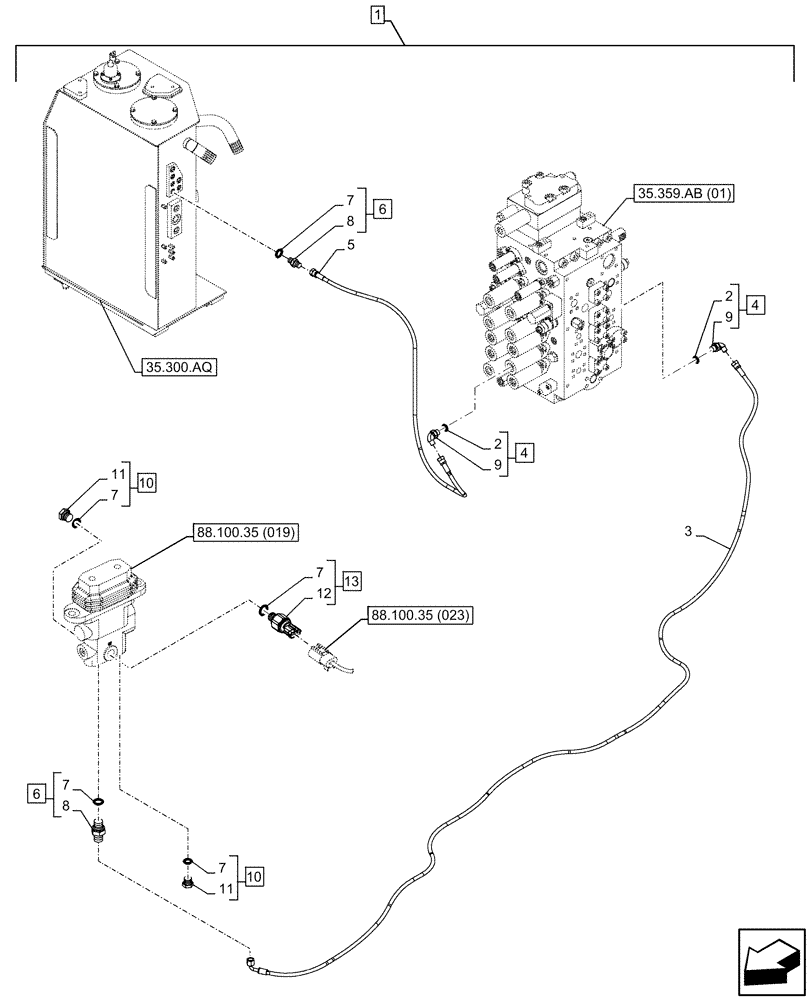

Схема запчастей Case CX300D LC - (88.100.35[022]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, FOOT CONTROL VALVE, LINE, PRESSURE RELIEF VALVE, SENSOR (88) - ACCESSORIES
35.300.aq
3
4
6
8
12
1
6
10
88.100.35 (023)
2
11
4
7
7
8
35.359.ab (01)
9
9
10
7
11
2
5
7
7
13
88.100.35 (019)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP510-00

CONSTRUCTION DIA

Breaker Circuit Pedal Kit, Incl 2 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47759489

O-RING

2шт.

3

KHJ17550

HOSE

Foot Control Valve B Port to Control Valve PA2 Port, 6mm ID x 3350mm

1шт.

4

47758277

ELBOW

G3/8" x G1/4", ASSY, Incl 2, 9

2шт.

5

KHJ2055

HOSE

Hydraulic Oil Tank to Control Valve PB2 Port, 6mm ID x 1250mm

1шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 7 (Qty 2), 8

2шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

5шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

2шт.

9

NSS

NOT SOLD SEPARAT

Elbow, Incl in 4

2шт.

10

159002A1

PLUG

C1 and A Ports, G1/4", ASSY, Incl 7 (Qty 2), 11

2шт.

11

NSS

NOT SOLD SEPARAT

Plug, Incl in 10

2шт.

12

NSS

NOT SOLD SEPARAT

Pressure Sensor, Incl in 13

1шт.

13

KHR26940

SENSOR

Pressure Sensor, 5MPa, C2 Port, ASSY, Incl 7 (Qty 1), 12

1шт.
