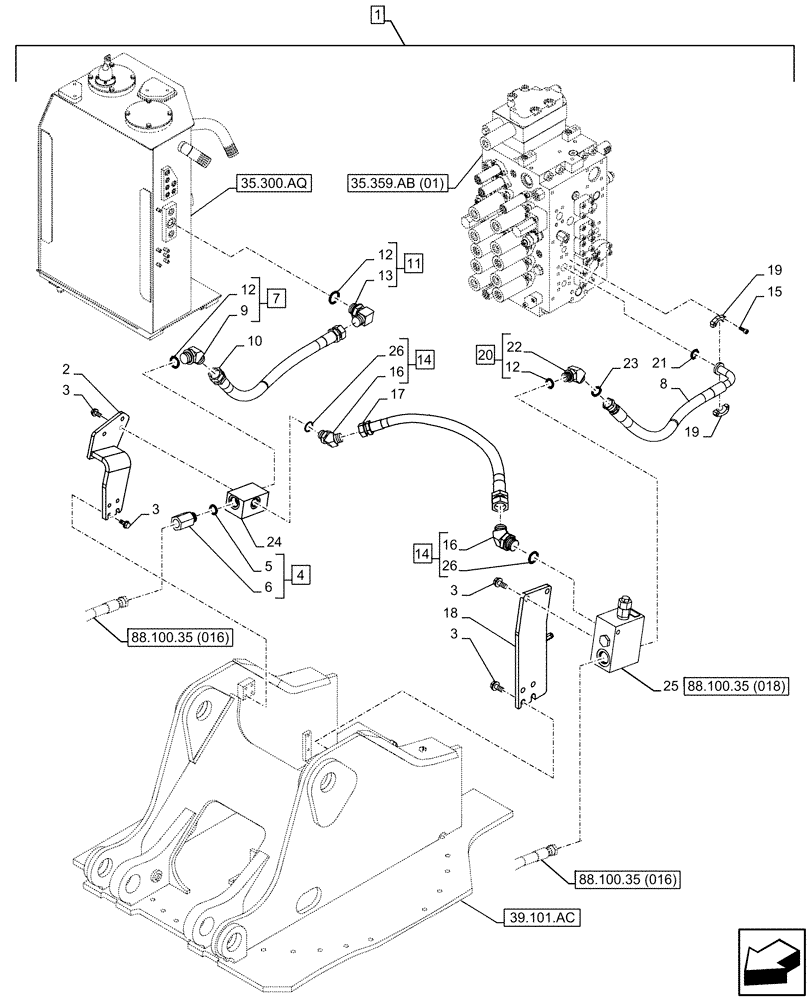

Запчасти Case CX300D LC (88.100.35[017]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, MANIFOLD VALVE, LINE (88) - ACCESSORIES

1

KG1BP510-00

CONSTRUCTION DIA

Breaker Circuit Pedal Kit, Incl 2 - 26

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KBJ16300

BRACKET, SUPPORTING

1шт.

3

166352A1

BOLT

12шт.

4

KHJ25900

SOCKET

ASSY, Incl 5, 6

1шт.

5

152211A1

O-RING

1шт.

6

NSS

NOT SOLD SEPARAT

Socket, Incl in 4

1шт.

7

157587A1

ELBOW

ASSY, Incl 12 (Qty 1), 9

1шт.

8

KBJ23800

HYDRAULIC HOSE

Relief Valve A Port to Control Valve A2 Port, 25.4mm ID x 1000mm

1шт.

9

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 7

1шт.

10

KBJ19800

HYDRAULIC HOSE

Manifold Valve to Hydraulic Oil Tank, 25.4mm ID x 730mm

1шт.

11

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

ASSY, Incl 12 (Qty 1), 13

1шт.

12

154523A1

O-RING

3шт.

13

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 11

1шт.

14

157586A1

ELBOW

ASSY, Incl 16, 26

2шт.

15

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

16

NSS

NOT SOLD SEPARAT

45°Fitting, Incl in 14

2шт.

17

KBJ13790

HYDRAULIC HOSE,740.00 mm

Manifold Valve to Relief Valve, 19mm ID x 740mm

1шт.

18

KRJ11470

SUPPORT

1шт.

19

153459A1

FLANGE

2шт.

20

KHJ11370

ELBOW

ASSY, Incl 12 (Qty 1), 22

1шт.

21

155211A1

O-RING

1шт.

22

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 20

1шт.

23

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

24

KRJ16400

MANIFOLD VALVE

1шт.

25

KHJ15050

VALVE PRESSURE RELIE

ASSY

1шт.

26

154503A1

O-RING

2шт.
