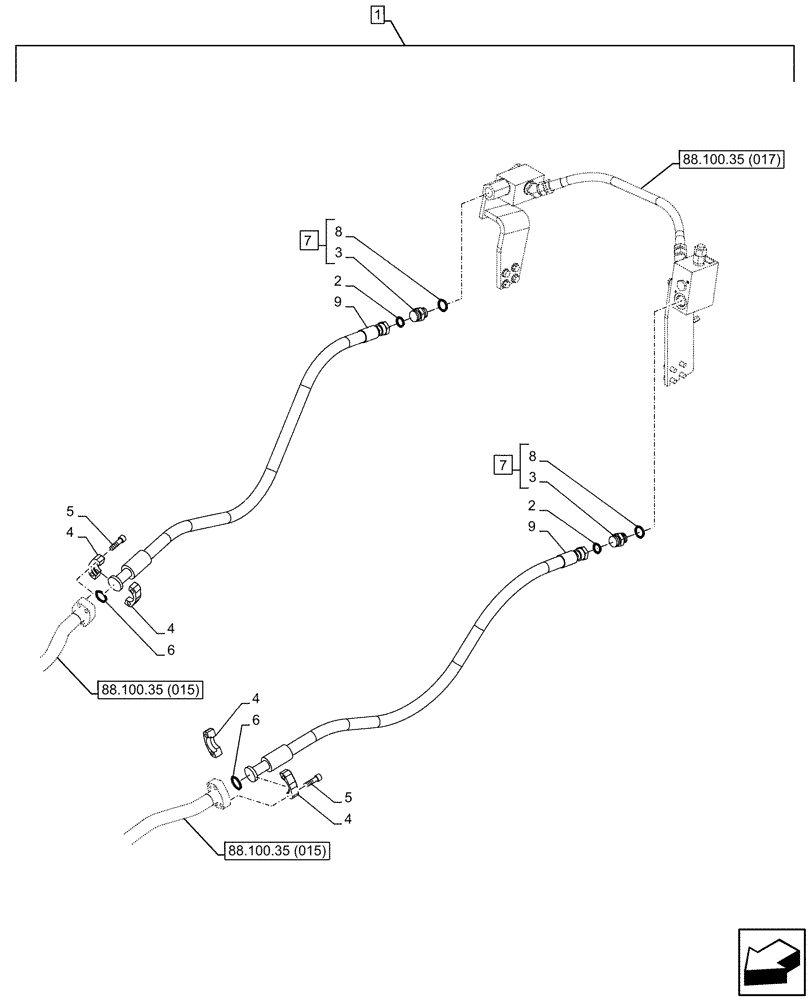

Запчасти Case CX300D LC (88.100.35[016]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, BOOM, LINE (88) - ACCESSORIES

1

KG1BP510-00

CONSTRUCTION DIA

Breaker Circuit Pedal Kit, Incl 2 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

3

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

2шт.

4

150124A1

FLANGE

4шт.

5

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

8шт.

6

164450A1

O-RING

2шт.

7

KHJ1349

ADAPTER

ASSY, Incl 3, 8

2шт.

8

154523A1

O-RING

2шт.

9

KBJ11790

HYDRAULIC HOSE,25.40 mm ID x 1550.00 mm

Boom Line to Manifold Valve

2шт.
