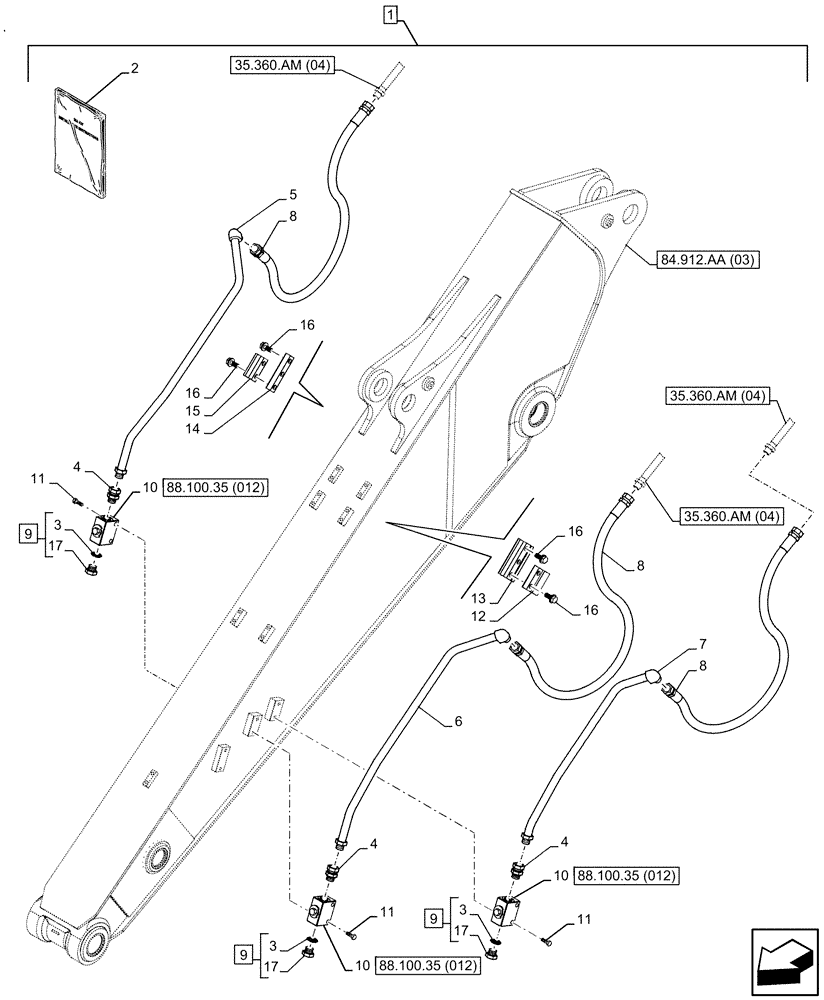

Запчасти Case CX300D LC (88.100.35[011]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=3.18M) (88) - ACCESSORIES

1

KG1BP497-00

CONSTRUCTION DIA

Second Option Line, Incl 2 - 17

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47789428

INSTRUCTION

1шт.

2

47789459

INSTRUCTION

1шт.

3

154487A1

O-RING

3шт.

4

KHJ1939

FITTING

G1/2" x G1/2"

3шт.

5

KBV19430

HYD TUBE

1шт.

6

KBV19420

HYD TUBE

1шт.

7

KBV19440

HYD TUBE

1шт.

8

KBV14860

HYDRAULIC HOSE,12.70 mm ID x 1700.00 mm

3шт.

9

159085A1

PLUG

ASSY, Incl 3, 17

3шт.

10

KHV10440

VALVE

ASSY

3шт.

11

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

6шт.

12

KHV10480

COLLAR CLAMP

2шт.

13

KHV10490

COLLAR CLAMP

2шт.

14

KHV10510

COLLAR CLAMP

2шт.

15

KHV10500

COLLAR CLAMP

2шт.

16

166352A1

BOLT

12шт.

17

NSS

NOT SOLD SEPARAT

Plug, Incl in 9

3шт.
