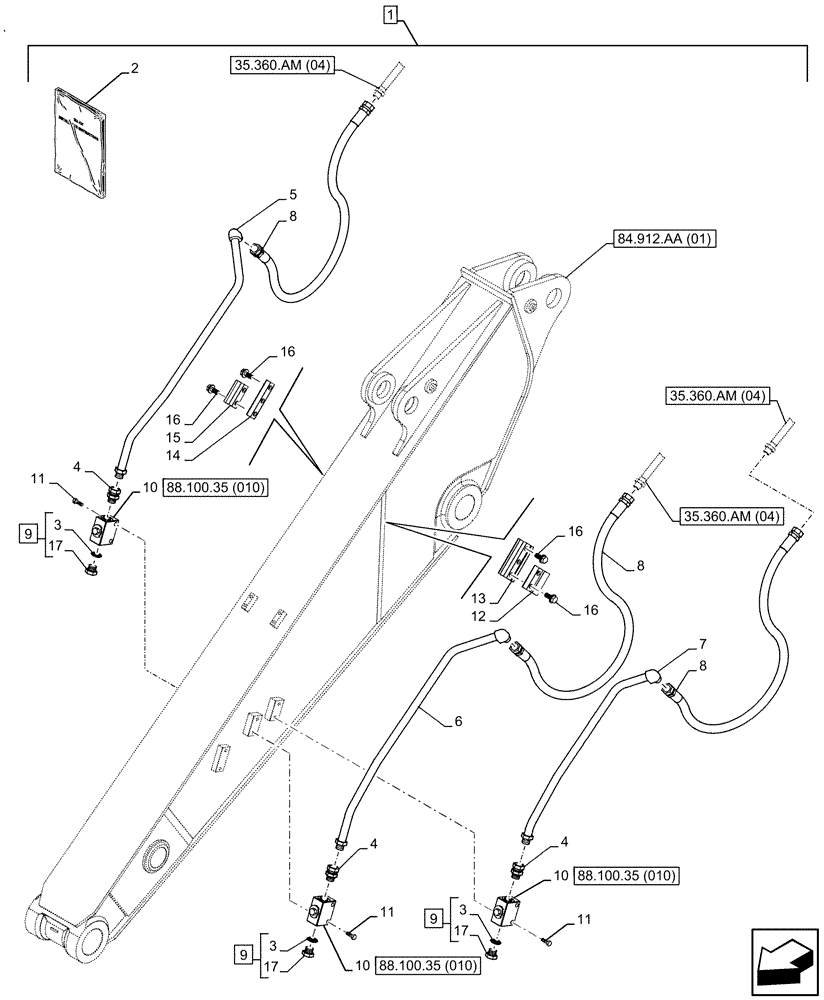

Запчасти Case CX300D LC (88.100.35[009]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=2.65M) (88) - ACCESSORIES

1

KG1BP498-00

CONSTRUCTION DIA

Second Option Line, Incl 2 - 17

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47789429

INSTRUCTION

1шт.

2

47789460

INSTRUCTION

1шт.

3

154487A1

O-RING

3шт.

4

KHJ1939

FITTING

G1/2" x G1/2"

3шт.

5

KBV20010

HYD TUBE

1шт.

6

KBV20000

HYD TUBE

1шт.

7

KBV20020

HYD TUBE

1шт.

8

KBV14860

HYDRAULIC HOSE,12.70 mm ID x 1700.00 mm

3шт.

9

159085A1

PLUG

ASSY, Incl 3, 17

3шт.

10

KHV10440

VALVE

ASSY

3шт.

11

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

6шт.

12

KHV10480

COLLAR CLAMP

1шт.

13

KHV10490

COLLAR CLAMP

1шт.

14

KHV10510

COLLAR CLAMP

1шт.

15

KHV10500

COLLAR CLAMP

1шт.

16

166352A1

BOLT

6шт.

17

NSS

NOT SOLD SEPARAT

Plug, Incl in 9

3шт.
