(88.100.35[005]) - DIA KIT, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=3.18M)

Запчасти Case CX300D LC (88.100.35[005]) - DIA KIT, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=3.18M) (88) - ACCESSORIES

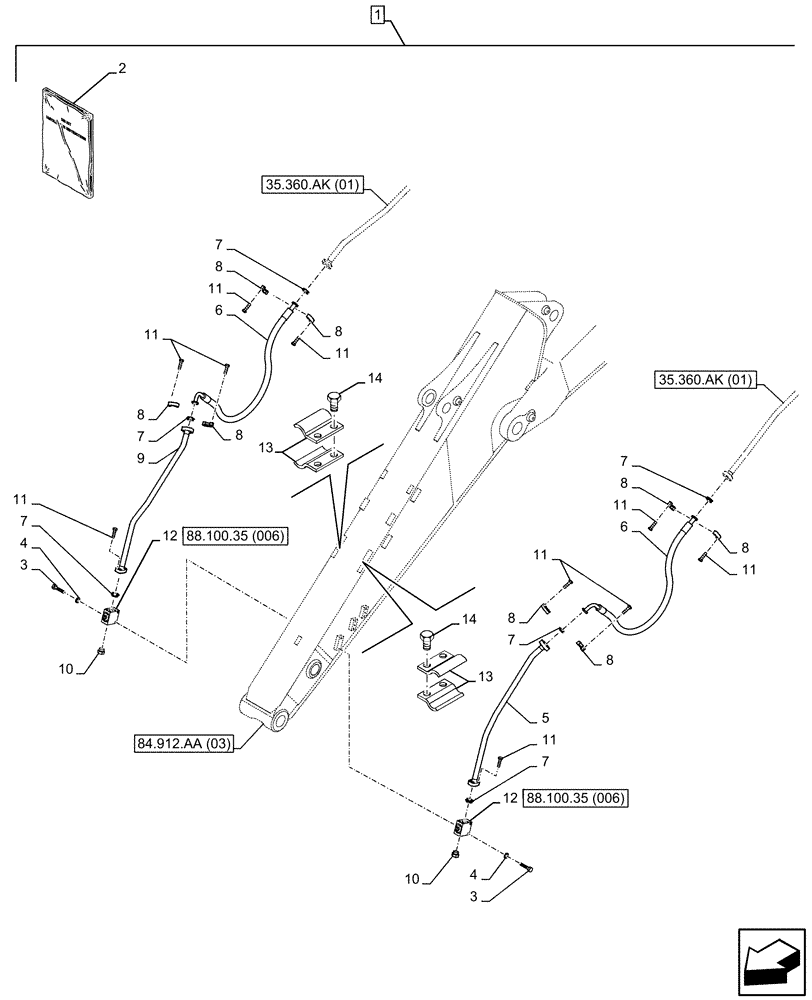

Схема запчастей Case CX300D LC - (88.100.35[005]) - DIA KIT, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=3.18M) (88) - ACCESSORIES
8
11
7
11
8
4
8
12
7
11
88.100.35 (006)
8
4
35.360.ak (01)
5
35.360.ak (01)
8
7
88.100.35 (006)
8
10
2
13
11
7
3
3
8
11
11
11
84.912.aa (03)
10
1
9
13
7
14
8
11
6
7
14
12
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP494-00

CONSTRUCTION DIA

Option Line, Bar Base, Incl 2 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47789422

INSTRUCTION

1шт.

2

47789455

INSTRUCTION

1шт.

3

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

M12 x 90mm

4шт.

4

150811A1

WASHER

4шт.

5

KBV19351

HYD TUBE

1шт.

6

KBV15980

HYDRAULIC HOSE,31.80 mm ID x 1900.00 mm

1900mm

2шт.

7

164450A1

O-RING

6шт.

8

150124A1

FLANGE

1 1/4"

8шт.

9

KBV19361

HYD TUBE

1шт.

10

162335A1

PLUG

2шт.

11

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

M14 x 50mm

24шт.

12

KHV12250

SHUT-OFF VALVE

ASSY

2шт.

13

KHV11060

COLLAR CLAMP

8шт.

14

166352A1

BOLT

8шт.
