(88.100.35[003]) - DIA KIT, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=2.65M)

Запчасти Case CX300D LC (88.100.35[003]) - DIA KIT, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=2.65M) (88) - ACCESSORIES

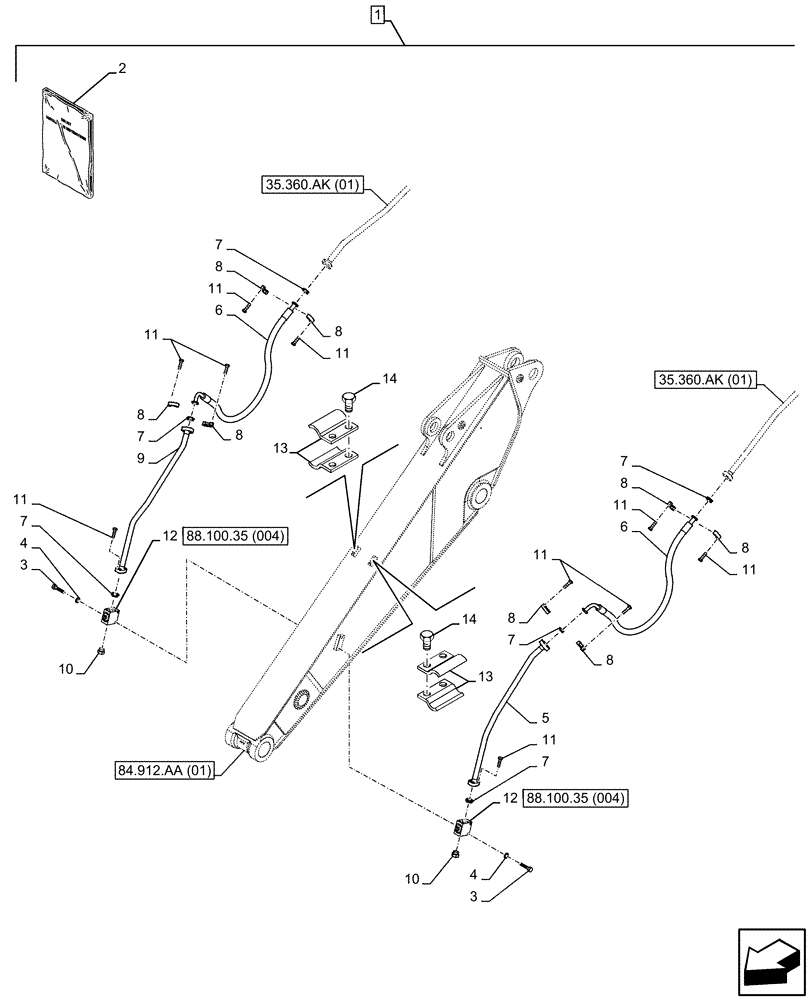

Схема запчастей Case CX300D LC - (88.100.35[003]) - DIA KIT, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=2.65M) (88) - ACCESSORIES
14
12
11
7
10
11
3
8
8
7
7
10
7
5
8
88.100.35 (004)
35.360.ak (01)
8
1
11
14
7
84.912.aa (01)
11
4
3
6
4
6
8
2
11
8
12
8
88.100.35 (004)
11
13
8
7
11
35.360.ak (01)
13
9
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP495-00

CONSTRUCTION DIA

Option Line, Bar Base, Incl 2 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47789424

INSTRUCTION

1шт.

2

47789456

INSTRUCTION

1шт.

3

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

M12 x 90mm

4шт.

4

150811A1

WASHER

4шт.

5

KBV19981

HYD TUBE

1шт.

6

KBV16090

HYDRAULIC HOSE,31.80 mm ID x 2150.00 mm

2шт.

7

164450A1

O-RING

6шт.

8

150124A1

FLANGE

1 1/4"

8шт.

9

KBV19991

HYD TUBE

1шт.

10

162335A1

PLUG

2шт.

11

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

M14 x 50mm

24шт.

12

KHV12250

SHUT-OFF VALVE

ASSY

2шт.

13

KHV11060

COLLAR CLAMP

4шт.

14

166352A1

BOLT

4шт.
