(88.100.10[05]) - DIA KIT, W/ PRE CLEANER, AIR CLEANER, VACUUM GAUGE

Запчасти Case CX300D LC (88.100.10[05]) - DIA KIT, W/ PRE CLEANER, AIR CLEANER, VACUUM GAUGE (88) - ACCESSORIES

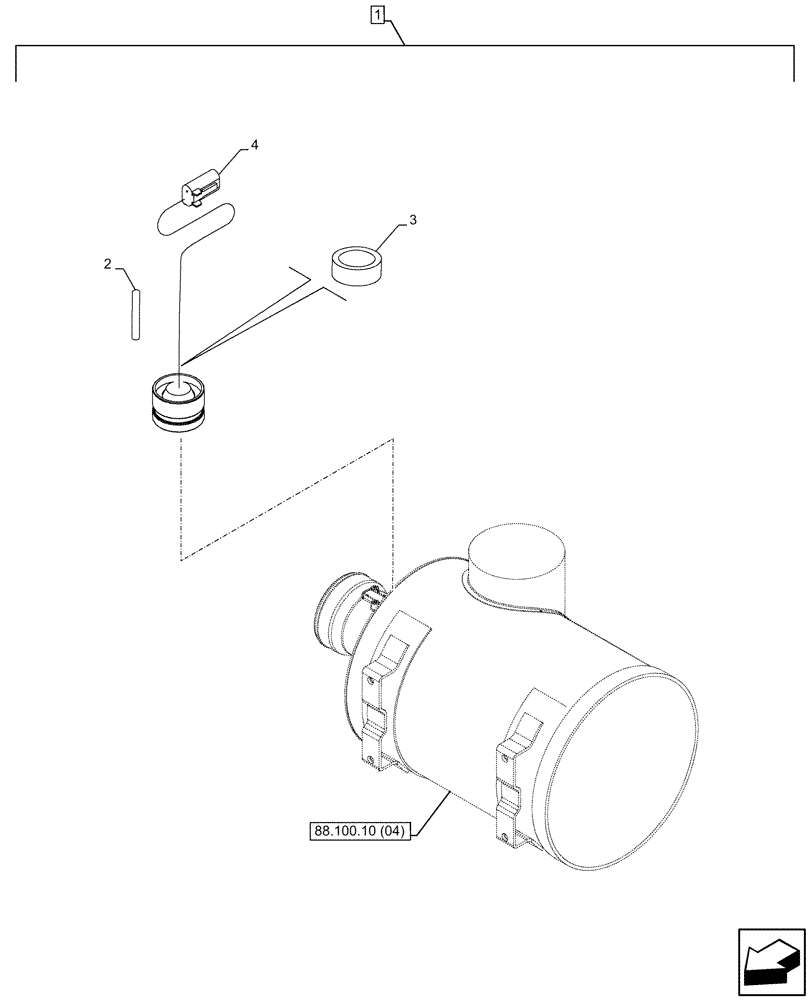

Схема запчастей Case CX300D LC - (88.100.10[05]) - DIA KIT, W/ PRE CLEANER, AIR CLEANER, VACUUM GAUGE (88) - ACCESSORIES
1
4
88.100.10 (04)
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP525-00

CONSTRUCTION DIA

Pre-Cleaner, Incl 2 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHR42760

TUBE

1шт.

3

150496A1

MOUNTING CLIP

250mm

3шт.

4

KHH17441

SENSOR

1шт.
