(88.100.10[01]) - DIA KIT, HYDRAULIC OIL, HYDRAULIC OIL RESERVOIR, DRAIN LINE

Запчасти Case CX300D LC (88.100.10[01]) - DIA KIT, HYDRAULIC OIL, HYDRAULIC OIL RESERVOIR, DRAIN LINE (88) - ACCESSORIES

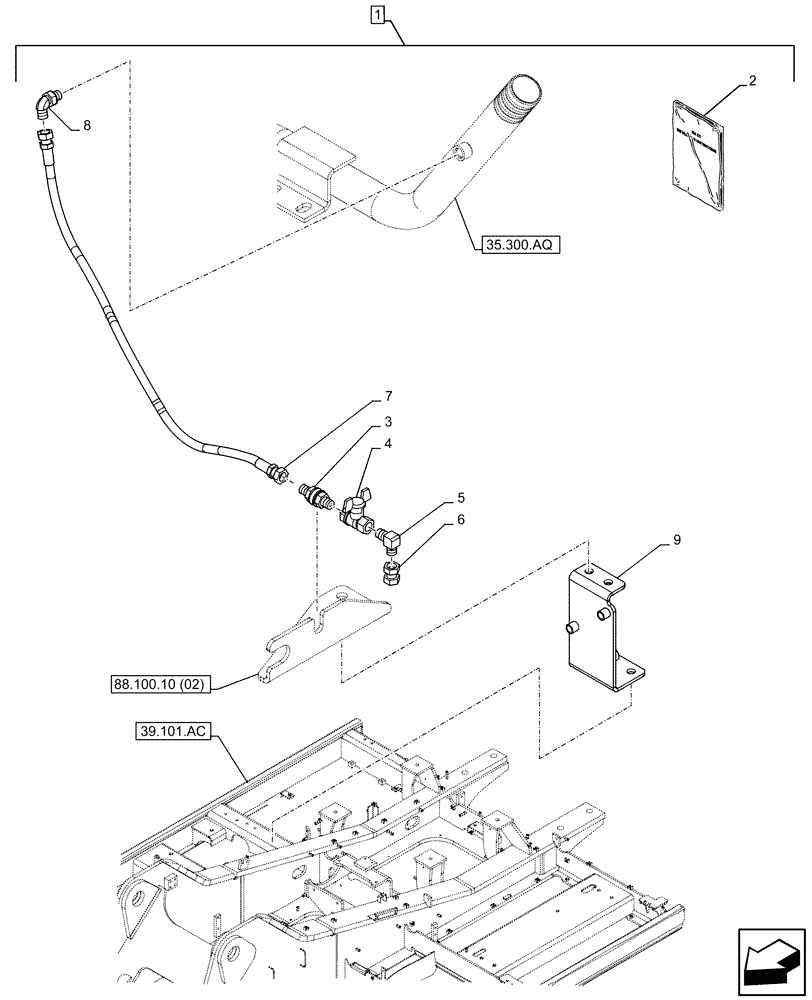

Схема запчастей Case CX300D LC - (88.100.10[01]) - DIA KIT, HYDRAULIC OIL, HYDRAULIC OIL RESERVOIR, DRAIN LINE (88) - ACCESSORIES
35.300.aq
2
39.101.ac
7
1
88.100.10 (02)
5
3
9
6
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1BP526-00

CONSTRUCTION DIA

Oil Sampling, Incl 2 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47789412

INSTRUCTION

1шт.

2

47789450

INSTRUCTION

1шт.

3

162640A1

ADAPTER

1шт.

4

158923A1

DRAIN VALVE

1шт.

5

153596A1

ADAPTER

1шт.

6

158842A1

PLUG

1шт.

7

KHJ1114

HYDRAULIC HOSE,6.35 mm ID x 850.00 mm

1шт.

8

KHJ28580

ELBOW

1шт.

9

KSJ22170

BRACKET

1шт.
