(84.910.AD[03]) - VAR - 481064 - BOOM, CYLINDER, BUSHING, SAFETY VALVE

Запчасти Case CX300D LC (84.910.AD[03]) - VAR - 481064 - BOOM, CYLINDER, BUSHING, SAFETY VALVE (84) - BOOMS, DIPPERS & BUCKETS

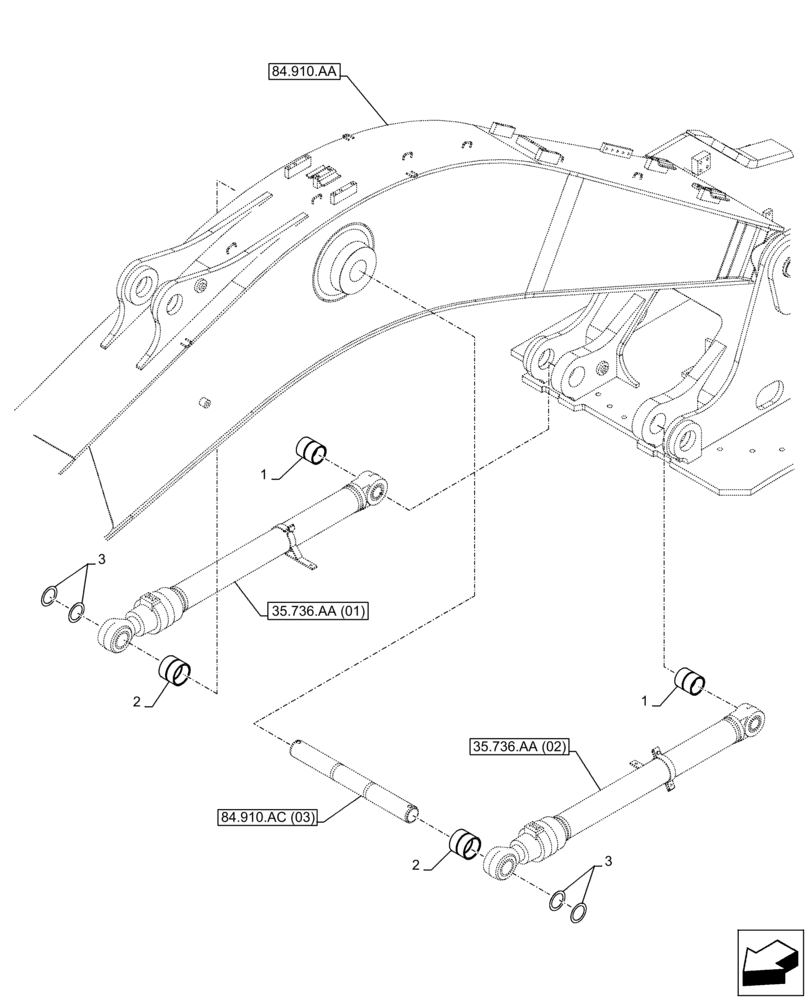

Схема запчастей Case CX300D LC - (84.910.AD[03]) - VAR - 481064 - BOOM, CYLINDER, BUSHING, SAFETY VALVE (84) - BOOMS, DIPPERS & BUCKETS
3
35.736.aa (01)
2
3
35.736.aa (02)
1
84.910.ac (03)
84.910.aa
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV1628

SELF LUB RING

2шт.

Parts are Included in Boom Cylinder Assembly PN KBV13640, PN KBV13650

1шт.

2

KBV1360

SELF LUB RING

2шт.

Parts are Included in Boom Cylinder Assembly PN KBV13640, PN KBV13650

1шт.

3

158453A1

SHIM

4шт.
