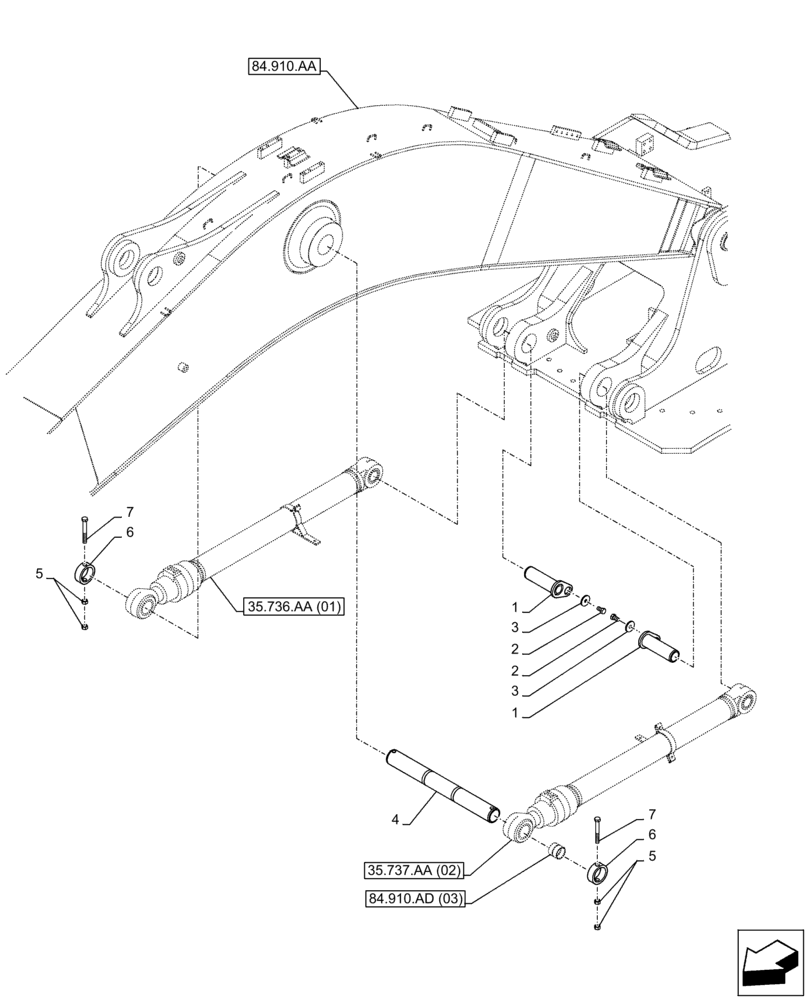

Запчасти Case CX300D LC (84.910.AC[03]) - VAR - 481064 - BOOM, CYLINDER, PIN, SAFETY VALVE (84) - BOOMS, DIPPERS & BUCKETS

1

KBV13720

PIN

2шт.

2

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

M12 x 25mm

2шт.

3

157141A1

WASHER

2шт.

4

KBV13580

PIN

1шт.

5

829-11420

NUT,M20 x 1.5, Cl 10

M20 x 1.5mm

4шт.

6

163086A1

COLLAR

, Serial Range: -C0327

2шт.

6

163087A1

HOSE CLIP

, Start Serial: D0327

2шт.

7

514-1218

BOLT,Hex, M20 x 1.5 x 180mm, Cl 10.9

, Serial Range: -C0327

2шт.

7

514-1219

BOLT,Hex, M20 x 1.5 x 190mm, Cl 10.9

M20 x 1.5mm x 190mm, Start Serial: D0327

2шт.
