(84.100.AP[01]) - VAR - 461023, 481064 - BUCKET, LINK, W/O HOOK, SAFETY VALVE

Запчасти Case CX300D LC (84.100.AP[01]) - VAR - 461023, 481064 - BUCKET, LINK, W/O HOOK, SAFETY VALVE (84) - BOOMS, DIPPERS & BUCKETS

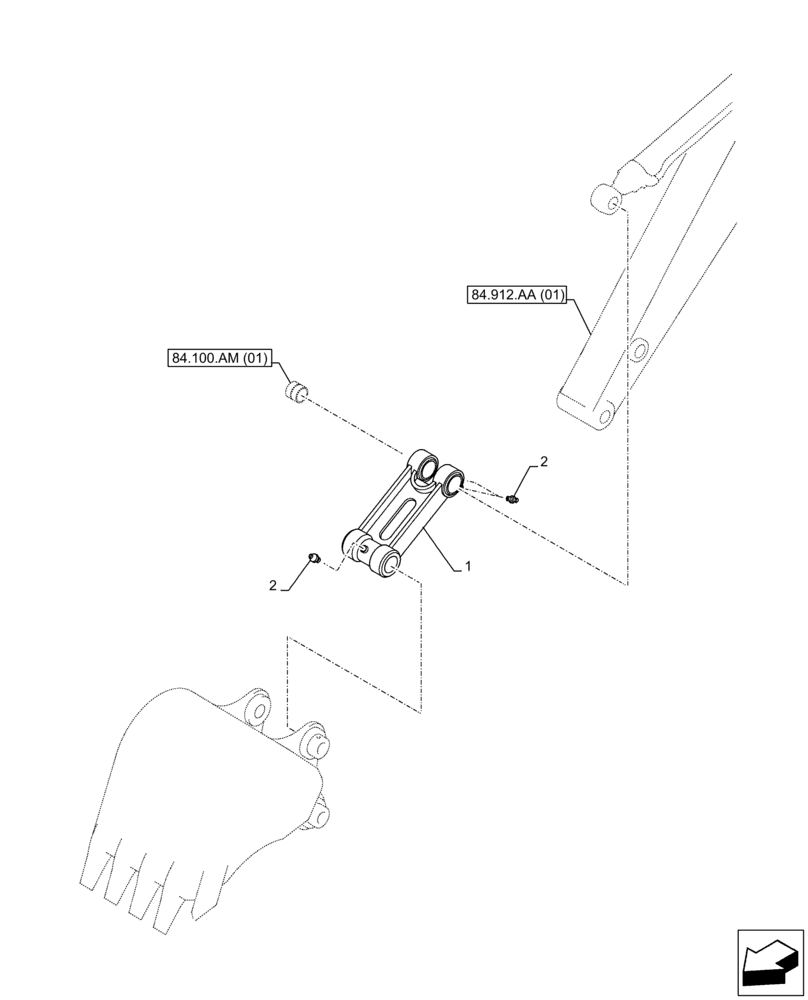

Схема запчастей Case CX300D LC - (84.100.AP[01]) - VAR - 461023, 481064 - BUCKET, LINK, W/O HOOK, SAFETY VALVE (84) - BOOMS, DIPPERS & BUCKETS
2
84.912.aa (01)
2
84.100.am (01)
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV14440

POWER ARM

ASSY, Serial Range: -C264

1шт.

See also Figure 84.100.AM(01)

1шт.

1

KBV40970

LINK

ASSY, Start Serial: D264

1шт.

See also Figure 84.100.AM(01)

1шт.

2

153630A1

LUBE NIPPLE

3шт.

Выбрано товаров: 5
