(55.518.AP) - WINDSHIELD WASH RESERVOIR, HOSE

Запчасти Case CX300D LC (55.518.AP) - WINDSHIELD WASH RESERVOIR, HOSE (55) - ELECTRICAL SYSTEMS

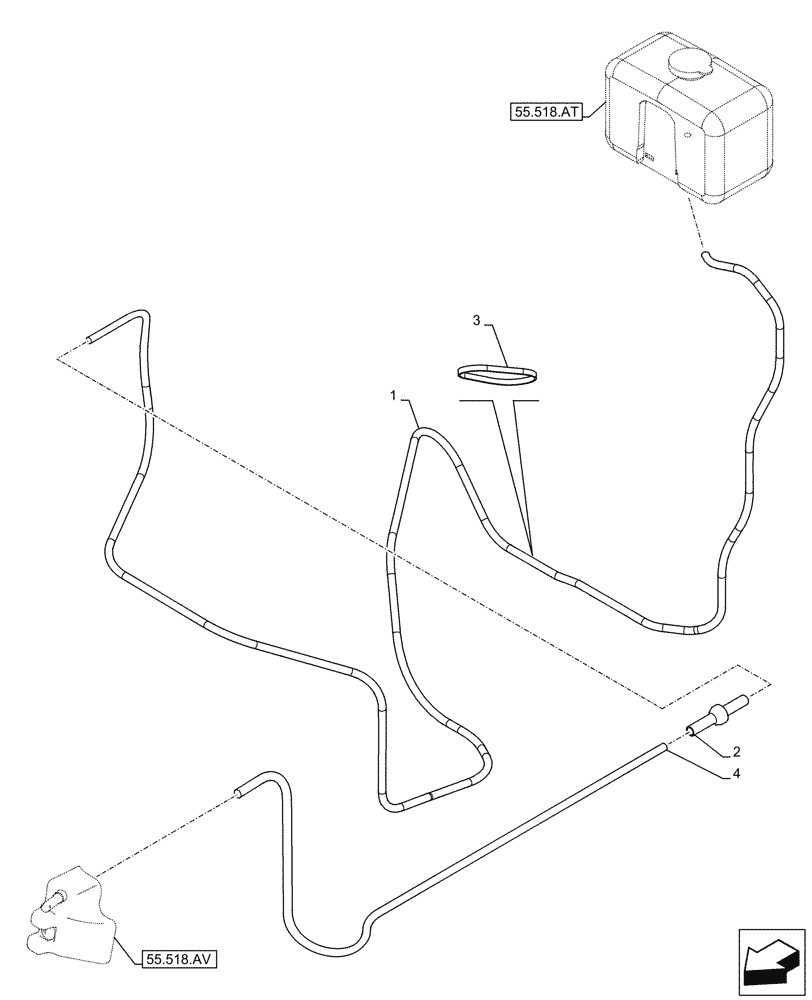

Схема запчастей Case CX300D LC - (55.518.AP) - WINDSHIELD WASH RESERVOIR, HOSE (55) - ELECTRICAL SYSTEMS
55.518.at
4
3
1
2
55.518.av
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR21770

LINER

1шт.

2

KHN16100

RUBBER JOINT

1шт.

Parts is Included in Cab Assembly PN KHN37083 (EU/MEA) and PN KHN37093 (NA)

1шт.

3

150496A1

MOUNTING CLIP

250mm

13шт.

4

KHN16050

TUBE

1шт.

Parts is Included in Cab Assembly PN KHN37083 (EU/MEA) and PN KHN37093 (NA)

1шт.
