(55.514.AB[02]) - VAR - 488040, 461555 - WORKING LIGHT, CAB, W/ DEFLECTOR

Запчасти Case CX300D LC (55.514.AB[02]) - VAR - 488040, 461555 - WORKING LIGHT, CAB, W/ DEFLECTOR (55) - ELECTRICAL SYSTEMS

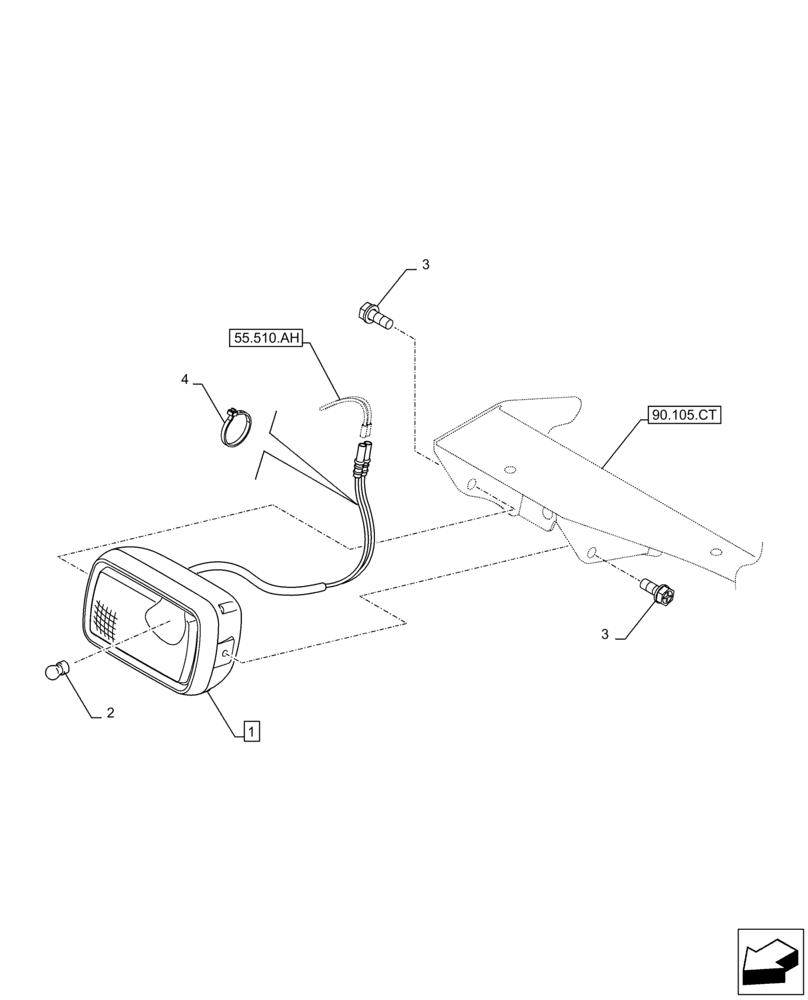

Схема запчастей Case CX300D LC - (55.514.AB[02]) - VAR - 488040, 461555 - WORKING LIGHT, CAB, W/ DEFLECTOR (55) - ELECTRICAL SYSTEMS
2
4
55.510.ah
3
1
90.105.ct
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR16240

WORK LAMP,Halogen, 24V, 70W, Clear

ASSY, Incl 2 (Qty 1), 3 (Qty 2)

2шт.

2

152812A1

BULB

2шт.

3

KHR3556

BOLT,Spcl

M16 x 16mm

4шт.

4

150496A1

MOUNTING CLIP

2шт.
