(55.510.BB[03]) - VAR - 461863 - OPTION, HARNESS, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX300D LC (55.510.BB[03]) - VAR - 461863 - OPTION, HARNESS, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

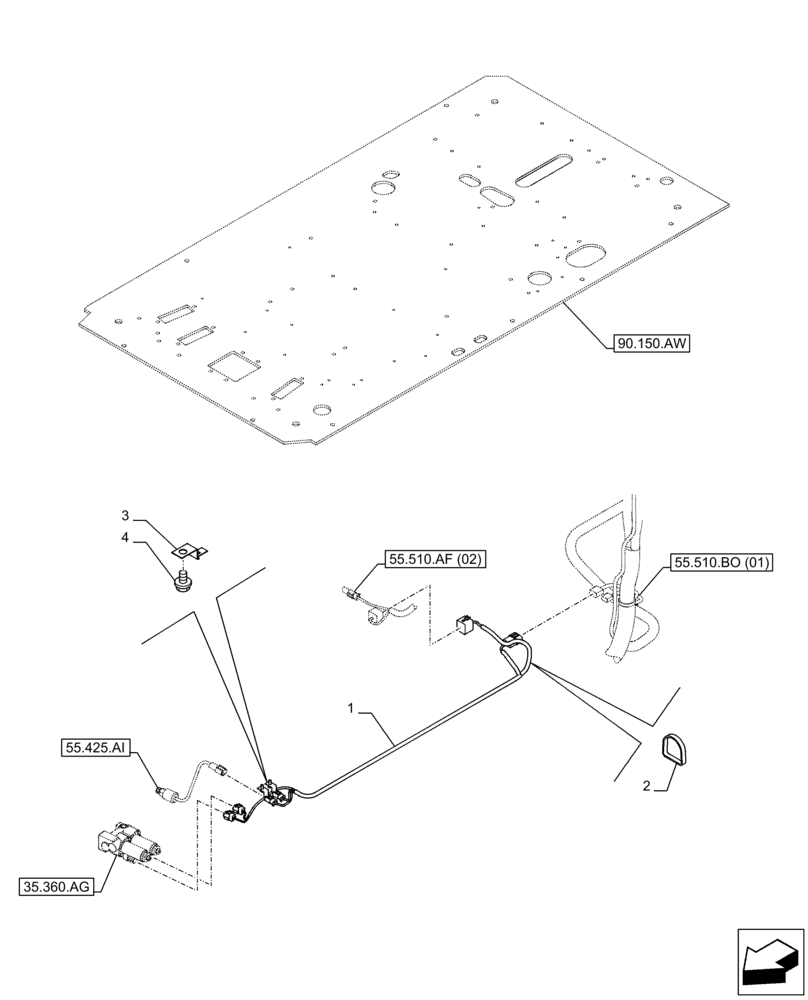

Схема запчастей Case CX300D LC - (55.510.BB[03]) - VAR - 461863 - OPTION, HARNESS, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
55.510.af (02)
1
2
55.510.bo (01)
55.425.ai
4
3
35.360.ag
90.150.aw
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR40410

WIRE HARNESS

Solenoid Valve

1шт.

2

150496A1

MOUNTING CLIP

3шт.

3

165405A1

CLIP

2шт.

4

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

Выбрано товаров: 4
