Запчасти Case CX300D LC (55.510.BB[02]) - VAR - 461863 - OPTION, HARNESS, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

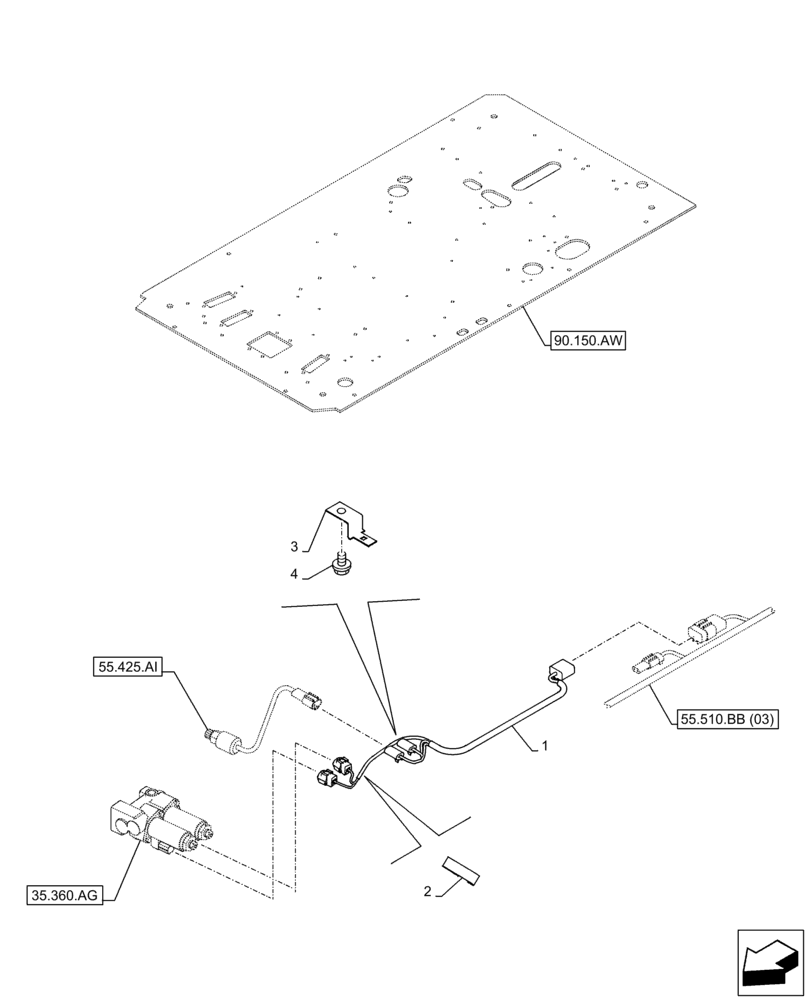

Схема запчастей Case CX300D LC - (55.510.BB[02]) - VAR - 461863 - OPTION, HARNESS, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
35.360.ag
2
55.425.ai
55.510.bb (03)
3
90.150.aw
1
4

Артикул

Название

Примечание

Количество

1

KHR39520

WIRE HARNESS

1шт.

2

150496A1

MOUNTING CLIP

1шт.

3

165405A1

CLIP

2шт.

4

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

Выбрано товаров: 4
