(55.510.BB[01]) - VAR - 461865, 461871, 461869 - OPTION, HARNESS, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX300D LC (55.510.BB[01]) - VAR - 461865, 461871, 461869 - OPTION, HARNESS, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

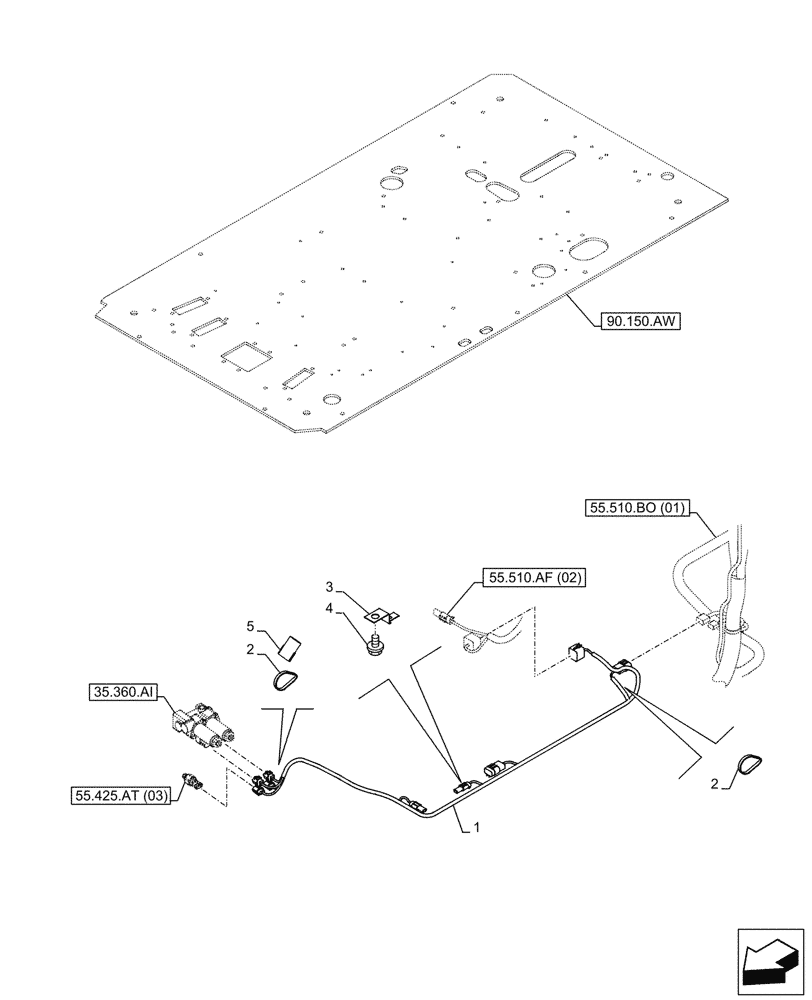

Схема запчастей Case CX300D LC - (55.510.BB[01]) - VAR - 461865, 461871, 461869 - OPTION, HARNESS, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
90.150.aw
2
3
5
2
4
1
55.510.bo (01)
55.510.af (02)
55.425.at (03)
35.360.ai
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR39501

WIRE HARNESS

1шт.

2

150496A1

MOUNTING CLIP

250mm

2шт.

3

165405A1

CLIP

3шт.

4

159602A1

BOLT,Sems, Hex, M6 x 16mm

3шт.

5

KHR45330

ELEC CONNECTOR

1шт.

Выбрано товаров: 5
