(55.425.AI) - VAR - 461863 - ROTATION, SPEED SENSOR, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX300D LC (55.425.AI) - VAR - 461863 - ROTATION, SPEED SENSOR, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

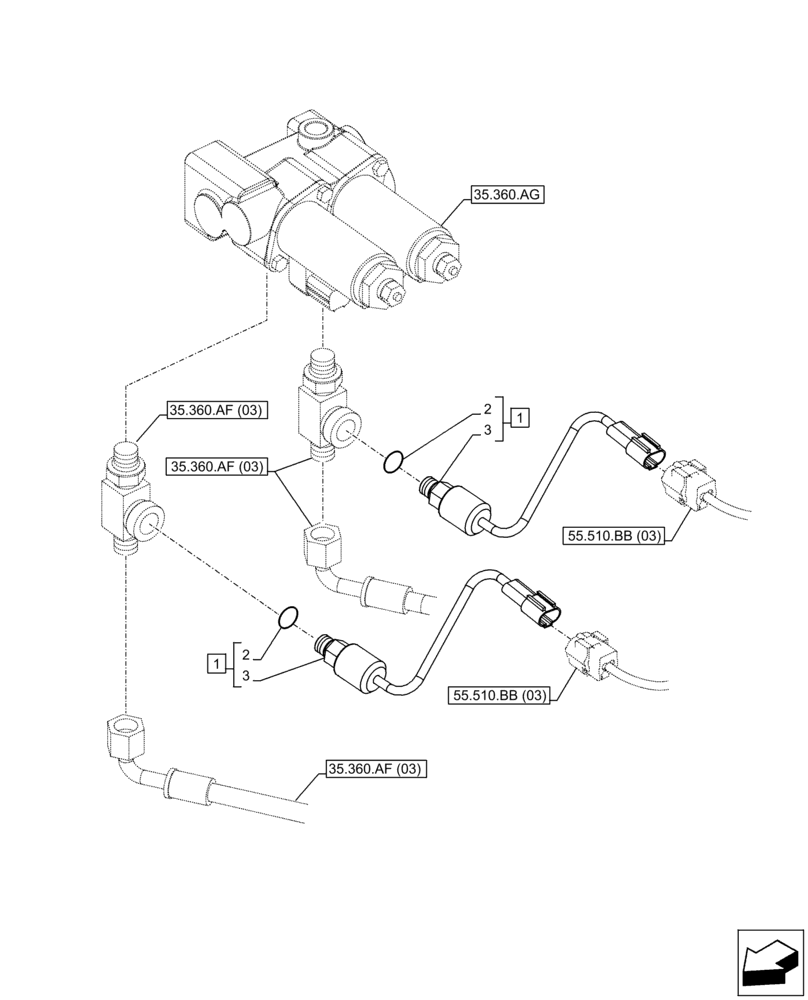

Схема запчастей Case CX300D LC - (55.425.AI) - VAR - 461863 - ROTATION, SPEED SENSOR, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
2
2
35.360.af (03)
55.510.bb (03)
35.360.ag
3
35.360.af (03)
1
3
35.360.af (03)
55.510.bb (03)
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR21490

PRESSURE SWITCH

ASSY, Incl 2, 3

2шт.

2

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

3

NSS

NOT SOLD SEPARAT

Switch pressure, Incl in 1

2шт.
