Запчасти Case CX300D LC (55.408.CH) - VAR - 481064 - PRESSURE SWITCH, BOOM, SAFETY VALVE (55) - ELECTRICAL SYSTEMS

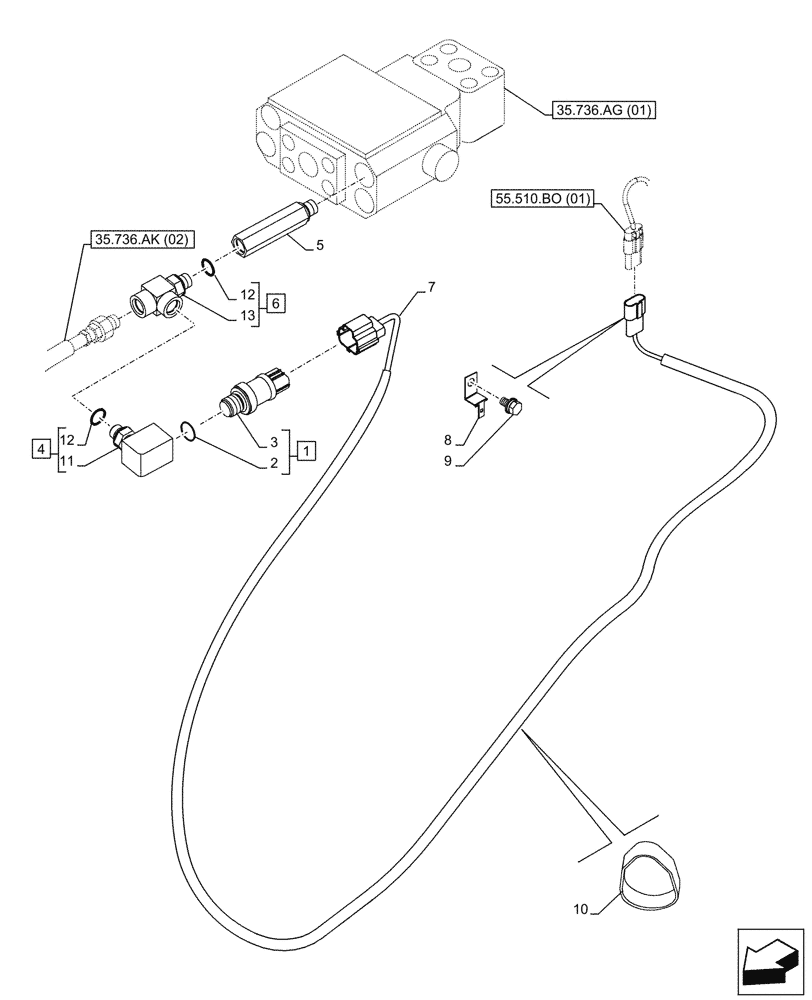

Схема запчастей Case CX300D LC - (55.408.CH) - VAR - 481064 - PRESSURE SWITCH, BOOM, SAFETY VALVE (55) - ELECTRICAL SYSTEMS
35.736.ag (01)
3
5
10
4
7
12
6
9
2
8
13
1
12
11
55.510.bo (01)
35.736.ak (02)

Артикул

Название

Примечание

Количество

1

KHR10290

SENSOR

ASSY, Incl 2, 3, Serial Range: -C0301

1шт.

1

KHR41950

SENSOR

ASSY, Incl 2, 3, Start Serial: D0301

1шт.

2

154483A1

O-RING

1шт.

3

NSS

NOT SOLD SEPARAT

Pressure Sensor, 50MPA, Incl in 1

1шт.

4

KHJ31800

ELBOW

ASSY, Incl 11, 12 (Qty 1)

1шт.

5

AEV11900

STUD

1шт.

6

KHJ12530

TEE

ASSY, Incl 13, 12 (Qty 1)

1шт.

7

KHR11650

WIRE HARNESS

1шт.

8

158962A1

CLIP

1шт.

9

167518A1

BOLT

M8 x 16mm

1шт.

10

150496A1

MOUNTING CLIP

250mm

2шт.

11

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 4

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

13

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 6

1шт.

Выбрано товаров: 14
