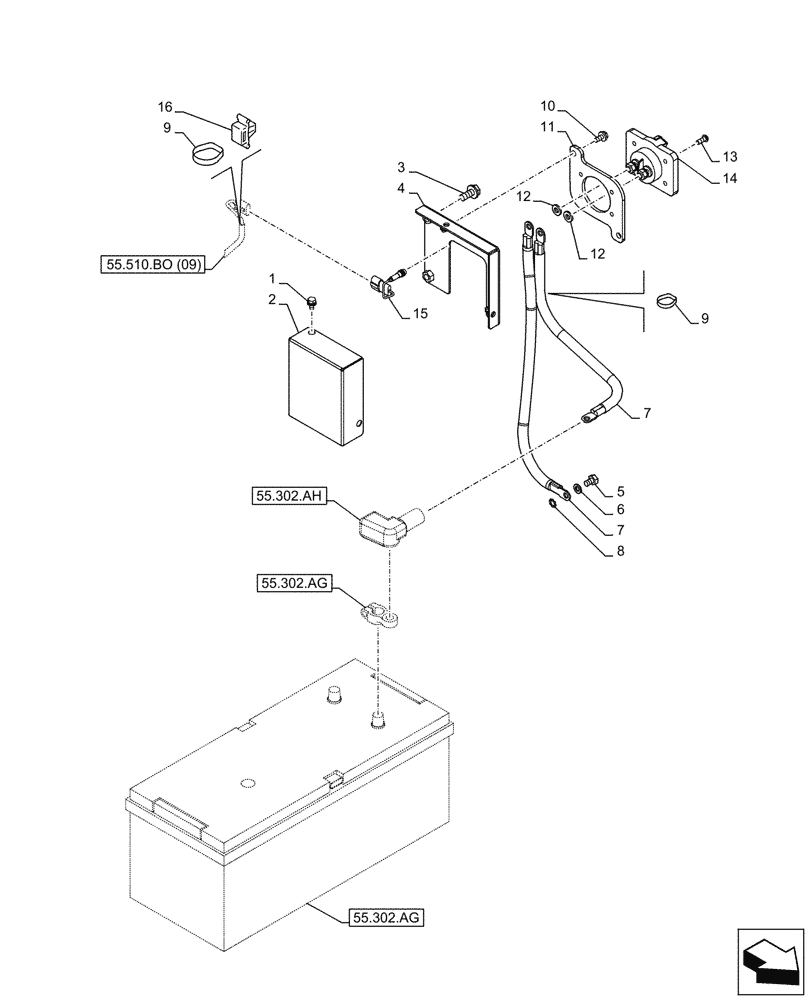

Запчасти Case CX300D LC (55.302.AI[02]) - BATTERY ISOLATOR, SWITCH - ASN NGS7N1136 (55) - ELECTRICAL SYSTEMS

1

167518A1

BOLT

M8 x 16mm

2шт.

2

KSR15320

COVER

1шт.

3

166352A1

BOLT

M12 x 30mm

2шт.

4

KSR15310

BRACKET

, Serial Range: -C0315

1шт.

4

KSR15311

BRACKET

, Start Serial: D0315

1шт.

5

627-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

1шт.

6

892-11010

LOCK WASHER,M10

1шт.

7

KHR40420

POS BATTERY CABLE

2шт.

8

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

9

150496A1

MOUNTING CLIP

250mm

2шт.

10

166350A1

BOLT

M8 x 20mm

2шт.

11

KRR21920

BRACKET

, Serial Range: -C0315

1шт.

11

KRR21921

BRACKET

, Start Serial: D0315

1шт.

12

150409A1

WASHER

High Strenght, Serial Range: -C0217

4шт.

12

KHR49150

SPACER

, Start Serial: D0217

2шт.

Parts is included in Switch Assembly PN KHR34681

1шт.

13

KHR37580

BOLT

4шт.

14

KHR34680

ROTARY SWITCH

, Serial Range: -C0217

1шт.

14

KHR34681

ROTARY SWITCH

ASSY, Incl 12, Start Serial: D0217

1шт.

15

KHR47290

WORK LAMP

1шт.

16

KHR10220

MOUNTING CLIP

1шт.
