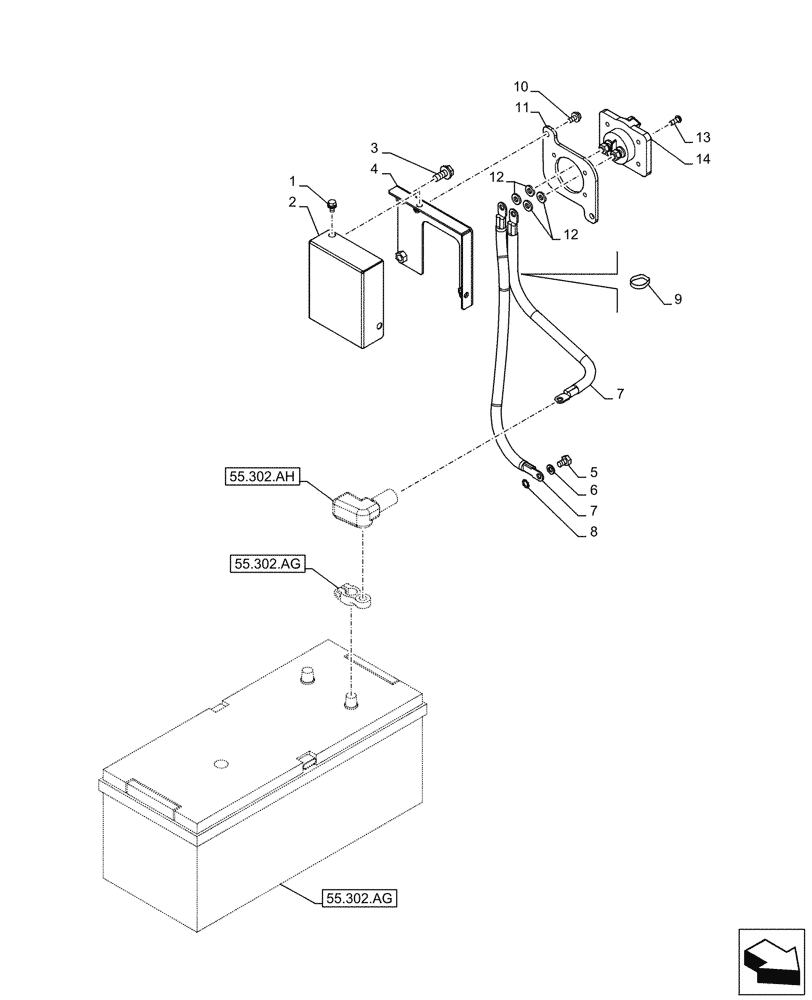

Запчасти Case CX300D LC (55.302.AI[01]) - BATTERY ISOLATOR, SWITCH - BSN NGS7N1135 (55) - ELECTRICAL SYSTEMS

1

167518A1

BOLT

M8 x 16mm

2шт.

2

KSR15320

COVER

1шт.

3

166352A1

BOLT

M12 x 30mm

2шт.

4

KSR15310

BRACKET

1шт.

5

627-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

1шт.

6

892-11010

LOCK WASHER,M10

1шт.

7

KHR40420

POS BATTERY CABLE

2шт.

8

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

9

150496A1

MOUNTING CLIP

250mm

1шт.

10

166350A1

BOLT

M8 x 20mm

2шт.

11

KRR21920

BRACKET

1шт.

12

150409A1

WASHER

High Strenght

4шт.

13

KHR37580

BOLT

Hex Soc HD

4шт.

14

KHR34680

ROTARY SWITCH

1шт.
