(50.200.AN) - AIR CONDITIONING RECEIVER DRYER

Запчасти Case CX300D LC (50.200.AN) - AIR CONDITIONING RECEIVER DRYER (50) - CAB CLIMATE CONTROL

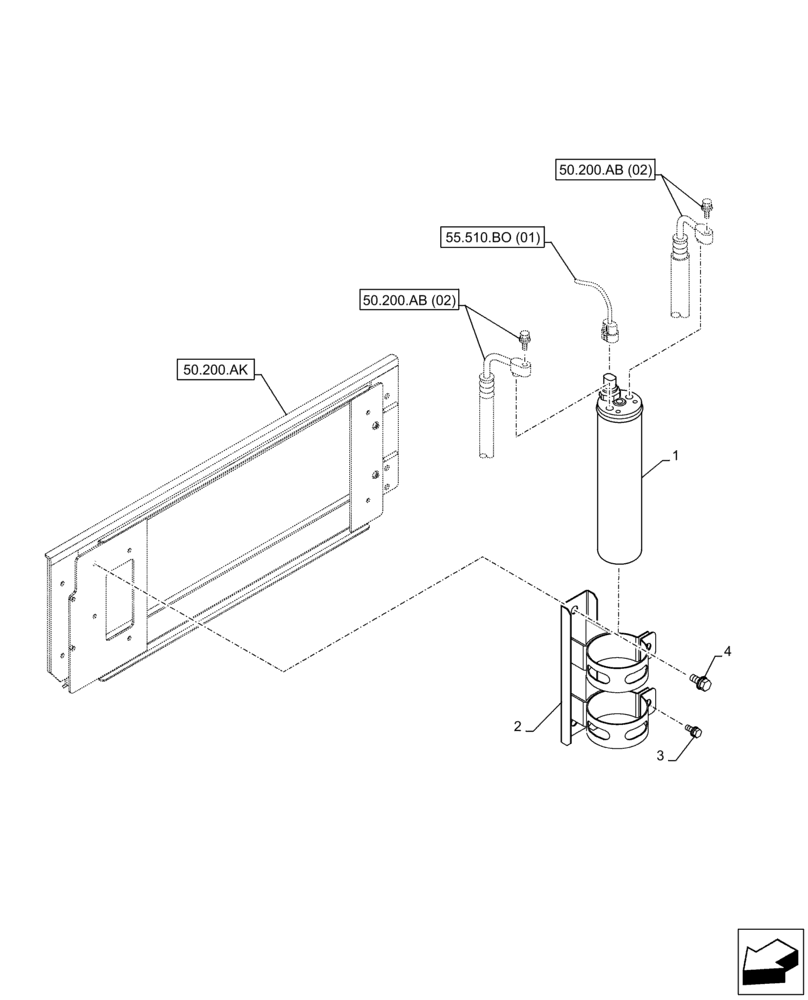

Схема запчастей Case CX300D LC - (50.200.AN) - AIR CONDITIONING RECEIVER DRYER (50) - CAB CLIMATE CONTROL
50.200.ab (02)
3
50.200.ak
50.200.ab (02)
2
1
55.510.bo (01)
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR13590

RECEIVER-DRYER

1шт.

2

KHR13600

BRACKET

1шт.

3

159602A1

BOLT,Sems, Hex, M6 x 16mm

M6 x 16mm

2шт.

4

167320A1

BOLT,Spcl, M8 x 20mm

M8 x 20mm

2шт.
