(50.200.AB[02]) - AIR CONDITIONING, LINE

Запчасти Case CX300D LC (50.200.AB[02]) - AIR CONDITIONING, LINE (50) - CAB CLIMATE CONTROL

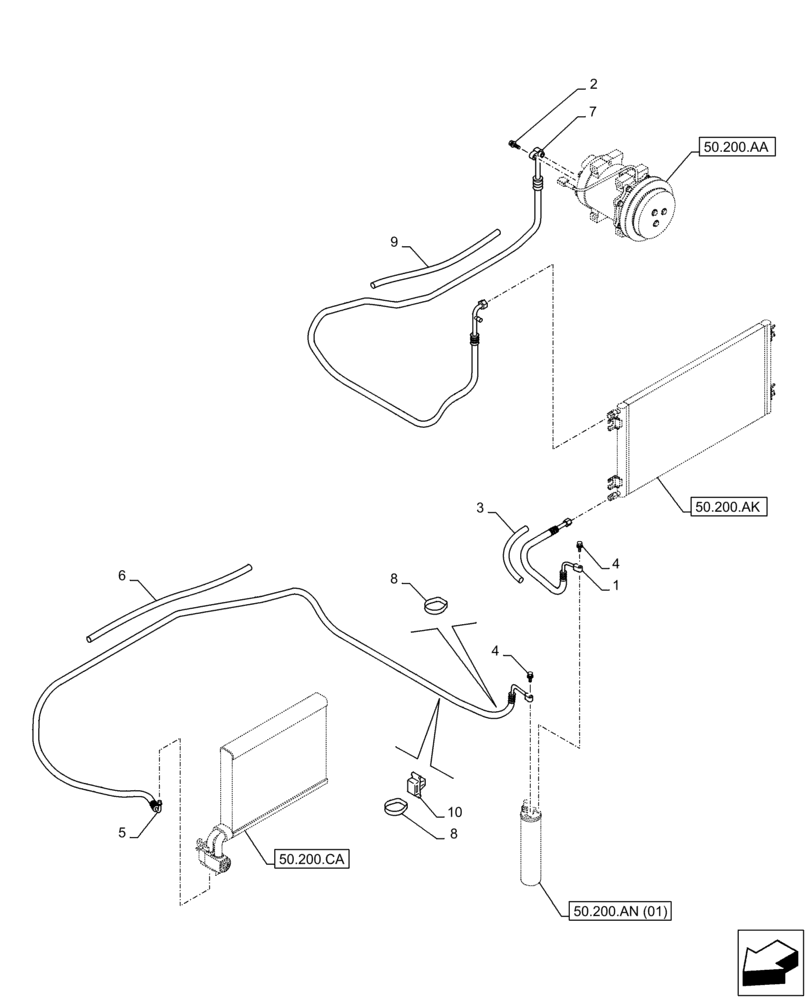

Схема запчастей Case CX300D LC - (50.200.AB[02]) - AIR CONDITIONING, LINE (50) - CAB CLIMATE CONTROL
6
4
9
8
5
7
2
8
50.200.ca
4
3
10
50.200.ak
50.200.aa
1
50.200.an (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR28870

LARGE HOSE

1шт.

2

162457A1

SPECIAL BOLT,Spcl

M8 x 25mm

1шт.

3

150768A1

PLASTIC-RUBBER TUBE,15 mm ID, 19.5 mm OD, 300 mm Length

1шт.

4

162043A1

BOLT,Spcl, M6

M6 x 28mm

2шт.

5

KHR26301

LARGE HOSE

1шт.

6

KRH1445

PLASTIC-RUBBER TUBE

15mm ID x 360mm

1шт.

7

KHR26290

LARGE HOSE

1шт.

8

150496A1

MOUNTING CLIP

250mm

1шт.

9

KHR12740

PLASTIC-RUBBER TUBE

1шт.

10

KHR10220

MOUNTING CLIP

1шт.

Выбрано товаров: 10
