(50.104.AO[02]) - AIR CONDITIONING, W/ HEATER, AIR DUCT

Запчасти Case CX300D LC (50.104.AO[02]) - AIR CONDITIONING, W/ HEATER, AIR DUCT (50) - CAB CLIMATE CONTROL

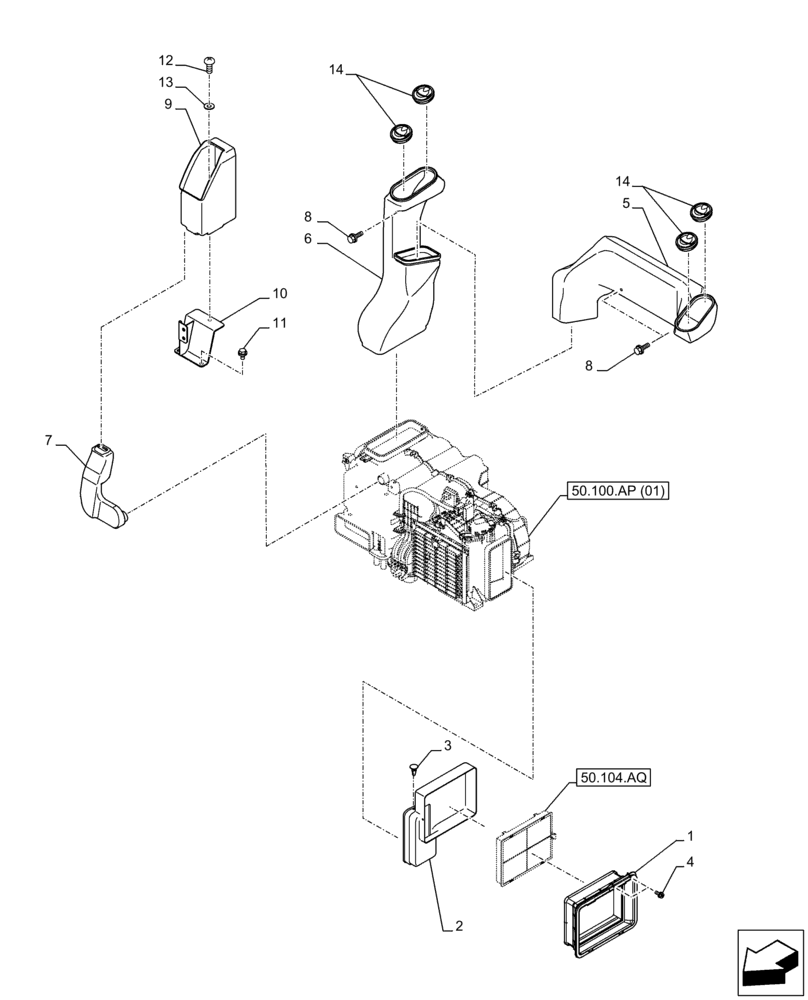

Схема запчастей Case CX300D LC - (50.104.AO[02]) - AIR CONDITIONING, W/ HEATER, AIR DUCT (50) - CAB CLIMATE CONTROL
11
6
9
8
14
12
13
50.100.ap (01)
8
14
4
10
50.104.aq
3
7
1
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR27121

DUCT

1шт.

2

KHR27130

DUCT

1шт.

3

KHR27960

PIN

1шт.

4

KHR41770

CLIP

1шт.

5

KHR27090

DUCT

LH

1шт.

6

KHR27100

DUCT

RH

1шт.

7

KHR27140

DUCT

1шт.

8

KHN2132

BOLT,Hex Flg Hd, M6 x 16

3шт.

9

KHR27270

BOX

1шт.

10

KHR24720

BRACKET, SUPPORTING

1шт.

11

166345A1

BOLT

2шт.

12

158404A1

DRAIN PLUG

1шт.

13

KHN2312

WASHER

1шт.

14

KHR21450

DIFFUSER

4шт.

Выбрано товаров: 14
