Запчасти Case CX300D LC (50.100.AP[02]) - AIR CONDITIONING, W/ HEATER, COMPONENTS (50) - CAB CLIMATE CONTROL

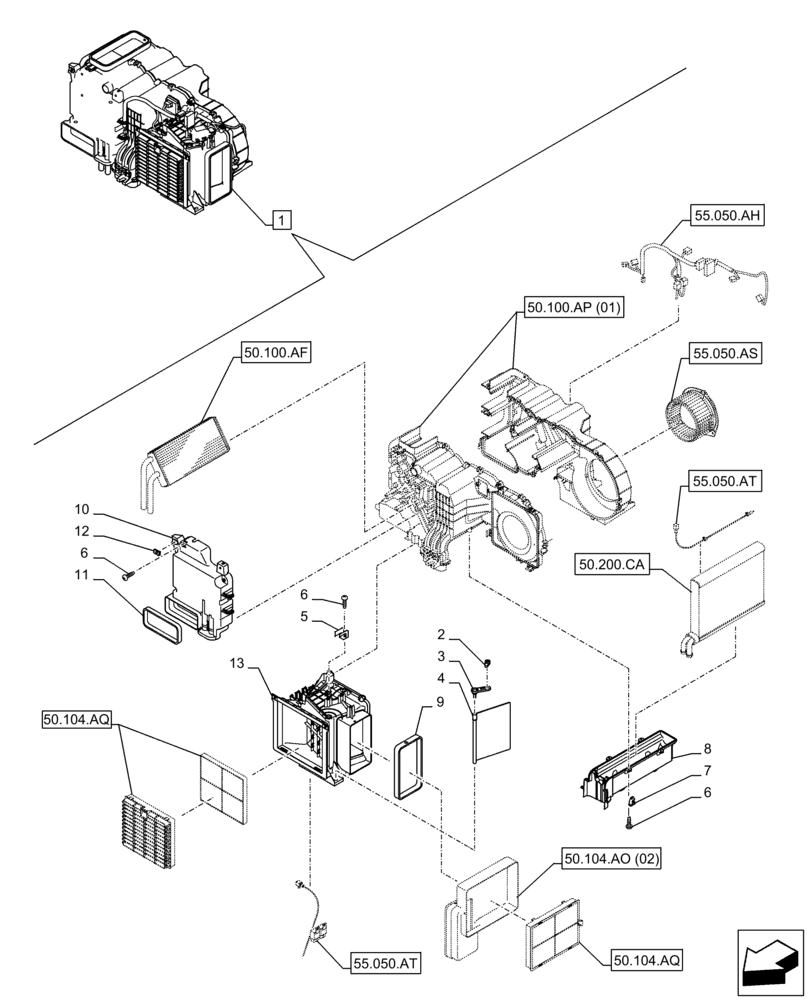

Схема запчастей Case CX300D LC - (50.100.AP[02]) - AIR CONDITIONING, W/ HEATER, COMPONENTS (50) - CAB CLIMATE CONTROL
6
6
2
5
55.050.as
50.104.aq
1
55.050.at
12
8
55.050.at
3
7
13
50.100.ap (01)
6
9
50.104.aq
55.050.ah
10
50.200.ca
50.104.ao (02)
11
4
50.100.af

Артикул

Название

Примечание

Количество

1

KHR27160

ECU

ASSY, Incl 2 - 13

1шт.

See also Figure 50.100.AP (01), 50.100.AF, 50.104.AQ, 50.200.CA, 55.050.AH, 55.050.AR, 55.050.AS, 55.050.AT

1шт.

2

KHR27460

LEVER

1шт.

3

KHR27510

LEVER

1шт.

4

KHR27480

DIFFUSER

1шт.

5

KHR27500

BRACKET, SUPPORTING

1шт.

6

KHR27520

SCREW

9шт.

7

KHR27890

CLIP

1шт.

8

KHR27880

DRAIN

1шт.

9

KHR27560

AERATOR

1шт.

10

KHR27570

COVER

1шт.

11

KHR27580

AERATOR

1шт.

12

KHR27590

NUT

1шт.

13

KHR27450

AIR DUCT

1шт.

Выбрано товаров: 14
