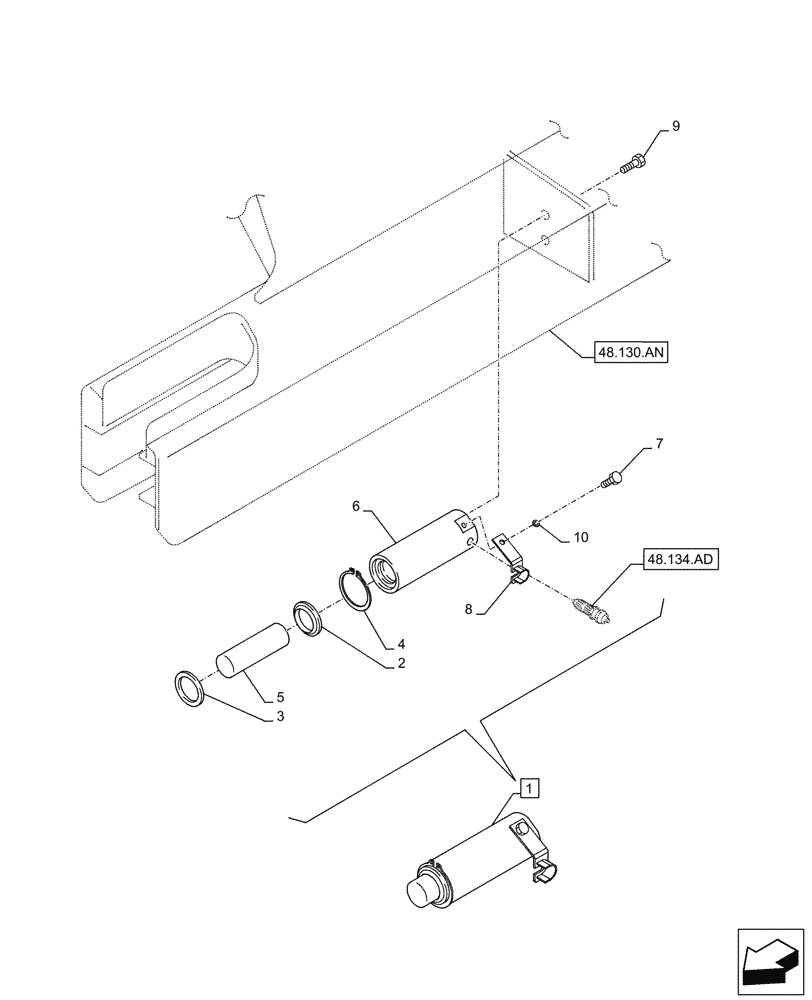

Запчасти Case CX300D LC (48.134.AJ) - TRACK CHAIN, CYLINDER (48) - TRACKS & TRACK SUSPENSION

1

KSA13070

CYLINDER

ASSY, Incl 2 - 8, 10, Serial Range: -C0239

2шт.

See Also Figure 48.134.AD

1шт.

1

KSA13071

HYDRAULIC CYLINDER

ASSY, Incl 2 - 8, 10, Start Serial: D0239

2шт.

See Also Figure 48.134.AD

1шт.

2

KSA11800

GASKET

2шт.

3

164260A1

SEAL

, Serial Range: -C0239

2шт.

3

KSA16020

SEAL

, Start Serial: D0239

2шт.

4

800-1185

SNAP RING,M85, Ext

2шт.

5

KSA11810

PISTON ROD

2шт.

6

KSA13060

HYD CYL SLEEVE

2шт.

7

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

, Serial Range: -C0239

2шт.

7

105R012Y025R

BOLT

, Start Serial: D0239

2шт.

8

KSA13030

BRACKET

2шт.

9

166349A1

BOLT,Sems, M16 x 65mm

4шт.

10

183-112VR

SPRING WASHER

, Serial Range: -C0239

1шт.
