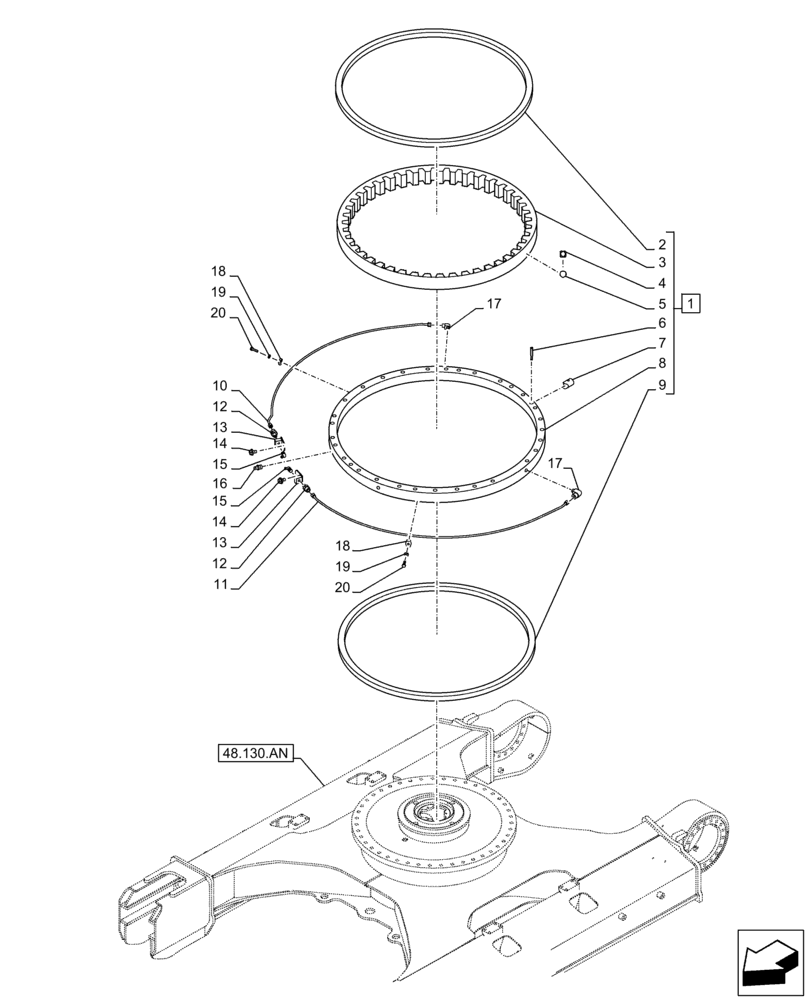

Запчасти Case CX300D LC (39.103.AD) - SLEWING RING (39) - FRAMES AND BALLASTING

1

KBB11330

RING GEAR

ASSY, Incl 2 - 9

1шт.

2

KSB0852

SEALING RING

1шт.

3

NSS

NOT SOLD SEPARAT

Race Bearing Inner, Incl in 1

1шт.

4

162551A1

SPACER

93шт.

5

162550A1

BEARING, BALL,41.27mm OD

93шт.

6

162549A1

LINCH PIN

1шт.

7

NSS

NOT SOLD SEPARAT

Spacer, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Race Bearing Outer, Incl in 1

1шт.

9

KSB0853

SEALING RING

1шт.

10

KBB11740

HYD TUBE,6 mm ID x 8 mm OD

1шт.

11

KBB11750

HYD TUBE,6 mm ID x 8 mm OD

1шт.

12

152599A1

MULTIPOLE CONNECTOR

2шт.

13

KRB10730

MANIFOLD VALVE

2шт.

14

166345A1

BOLT

M8 x 16mm

2шт.

15

153631A1

LUBE NIPPLE,1/8"-27 NPT

B - R 1/8"

2шт.

16

153630A1

LUBE NIPPLE

1шт.

17

152627A1

ELBOW

2шт.

18

151504A1

CLAMP

2шт.

19

153081A1

WASHER

M8

2шт.

20

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

M8 x 30mm

2шт.
