(35.738.AE[05]) - VAR - 481243 - BUCKET CYLINDER, LINES (2.65M)

Запчасти Case CX300D LC (35.738.AE[05]) - VAR - 481243 - BUCKET CYLINDER, LINES (2.65M) (35) - HYDRAULIC SYSTEMS

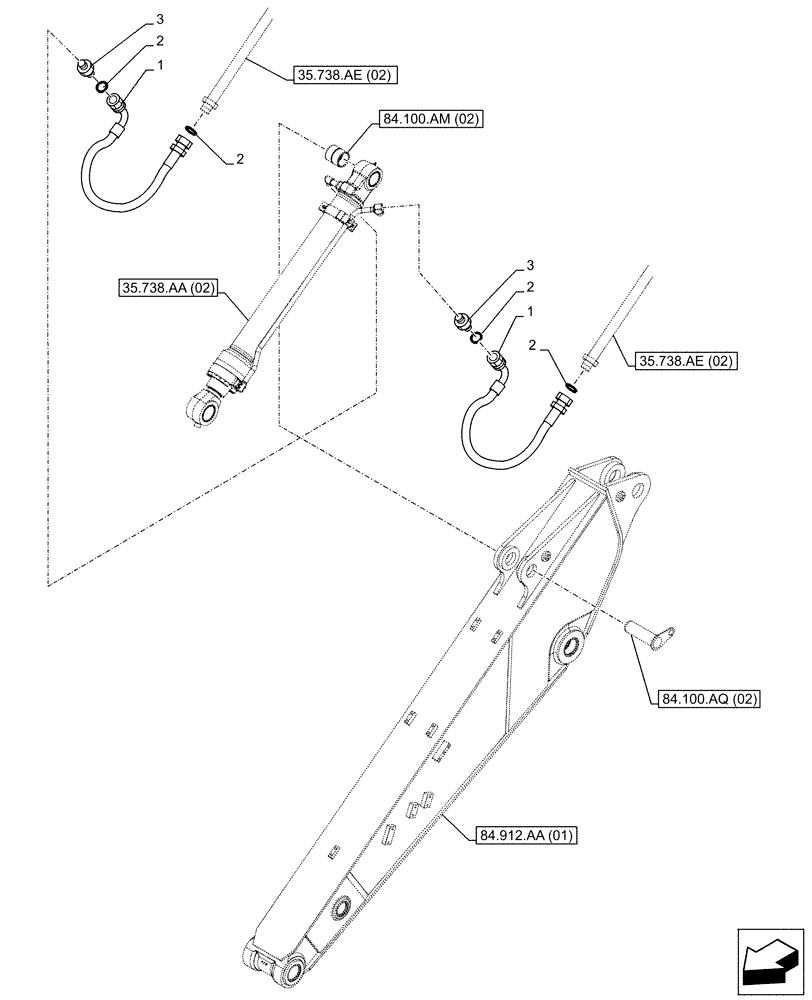

Схема запчастей Case CX300D LC - (35.738.AE[05]) - VAR - 481243 - BUCKET CYLINDER, LINES (2.65M) (35) - HYDRAULIC SYSTEMS
84.100.aq (02)
2
2
84.100.am (02)
2
2
35.738.aa (02)
3
35.738.ae (02)
1
3
1
35.738.ae (02)
84.912.aa (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV16400

HYDRAULIC HOSE

1800mm

2шт.

2

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

3

KHJ15840

ADAPTER

G3/4"

2шт.

Выбрано товаров: 3
