(35.738.AE[04]) - VAR - 781180 - BUCKET CYLINDER, LINES (3.20M)

Запчасти Case CX300D LC (35.738.AE[04]) - VAR - 781180 - BUCKET CYLINDER, LINES (3.20M) (35) - HYDRAULIC SYSTEMS

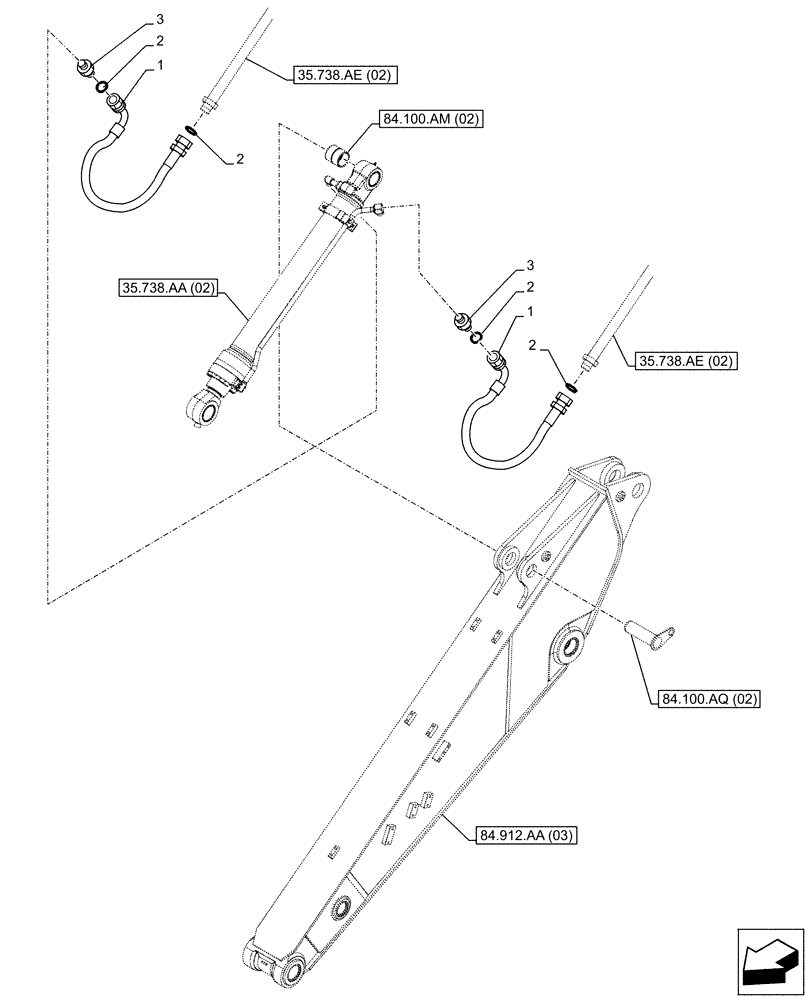

Схема запчастей Case CX300D LC - (35.738.AE[04]) - VAR - 781180 - BUCKET CYLINDER, LINES (3.20M) (35) - HYDRAULIC SYSTEMS
3
2
1
84.100.aq (02)
2
3
2
84.100.am (02)
35.738.ae (02)
2
35.738.aa (02)
35.738.ae (02)
84.912.aa (03)
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV32400

HYDRAULIC HOSE

25mm ID x 1750mm

2шт.

2

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

3

KHJ15840

ADAPTER

G3/4"

2шт.
