(35.738.AE[02]) - VAR - 481243, 481850, 781180 - BUCKET CYLINDER, LINES

Запчасти Case CX300D LC (35.738.AE[02]) - VAR - 481243, 481850, 781180 - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

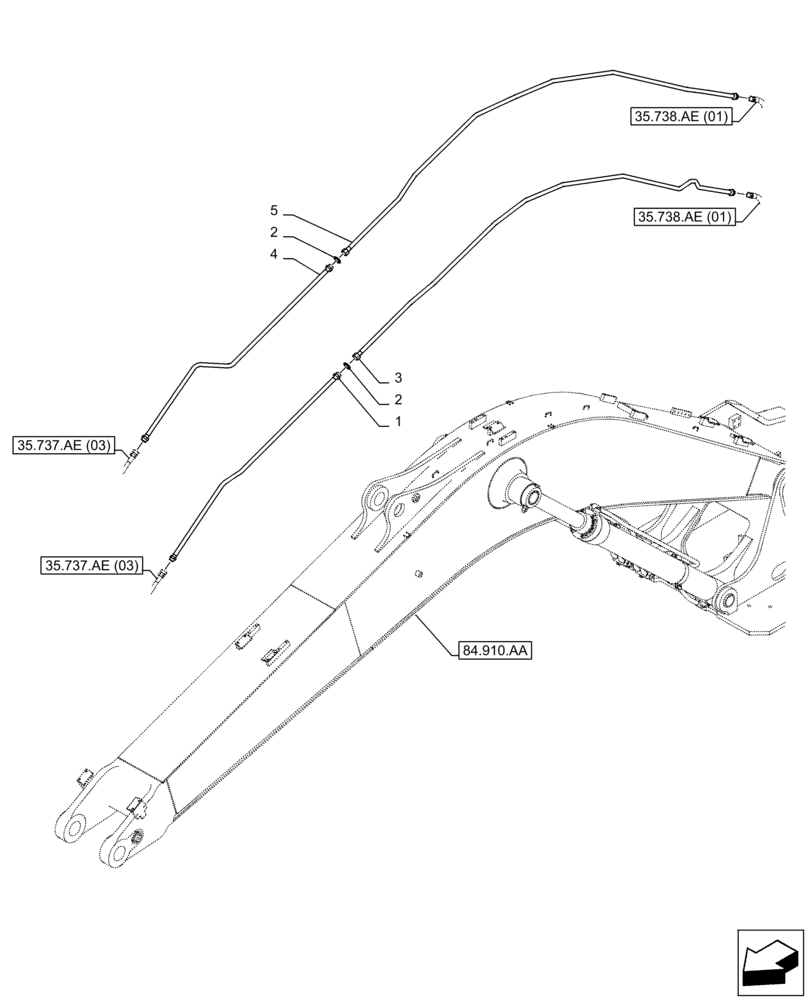

Схема запчастей Case CX300D LC - (35.738.AE[02]) - VAR - 481243, 481850, 781180 - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
5
2
35.738.ae (01)
3
35.737.ae (03)
84.910.aa
1
4
35.737.ae (03)
35.738.ae (01)
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV32360

PIPE

LH

1шт.

2

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

3

KBV15030

HYD TUBE

LH

1шт.

4

KBV32380

PIPE

RH

1шт.

5

KBV15050

HYD TUBE

RH

1шт.

Выбрано товаров: 5
