(35.738.AE[01]) - BUCKET CYLINDER, LINES

Запчасти Case CX300D LC (35.738.AE[01]) - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

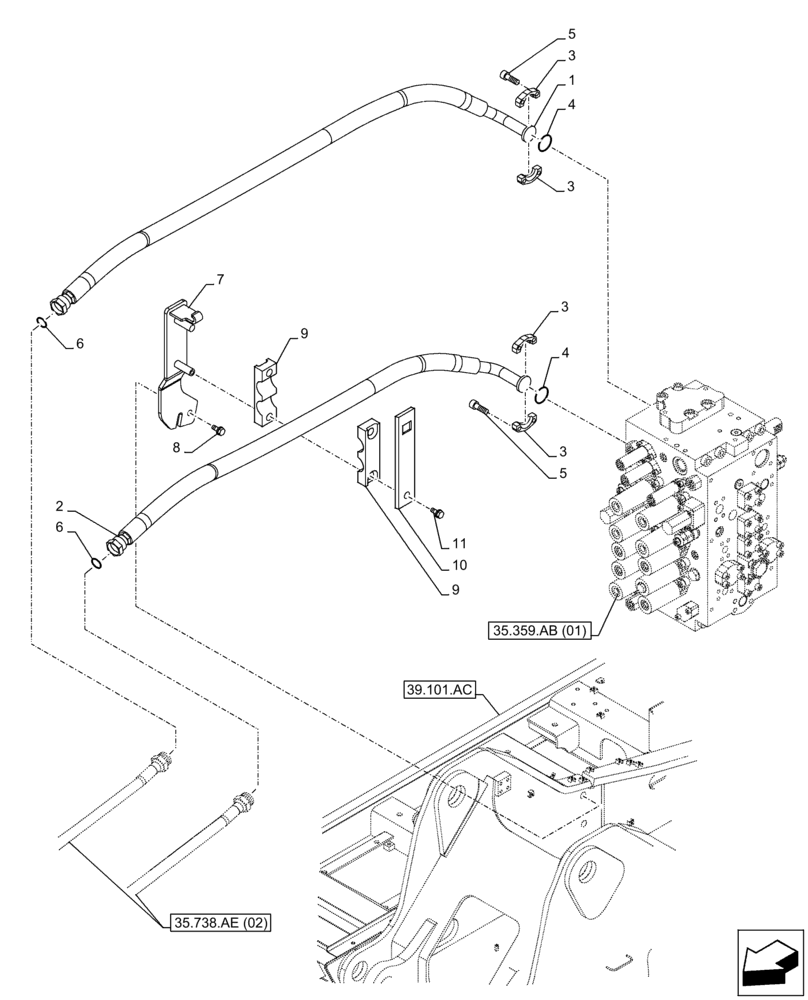

Схема запчастей Case CX300D LC - (35.738.AE[01]) - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
39.101.ac
3
9
5
6
7
4
6
35.738.ae (02)
1
3
9
4
3
11
5
8
10
3
2
35.359.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBJ23140

HYDRAULIC HOSE

25mm ID x 1730mm

1шт.

2

KBJ23160

HYDRAULIC HOSE

25mm ID x 1580mm

1шт.

3

153459A1

FLANGE

4шт.

4

155211A1

O-RING

2шт.

5

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

M10 x 30mm

8шт.

6

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

7

KBJ23181

BRACKET

1шт.

8

166352A1

BOLT

M12 x 30mm

1шт.

9

KBJ14410

HOSE CLAMP

2шт.

10

KBJ23200

PLATE

1шт.

11

166347A1

BOLT,Sems, M10 x 30mm

M10 x 30mm

1шт.

Выбрано товаров: 11
