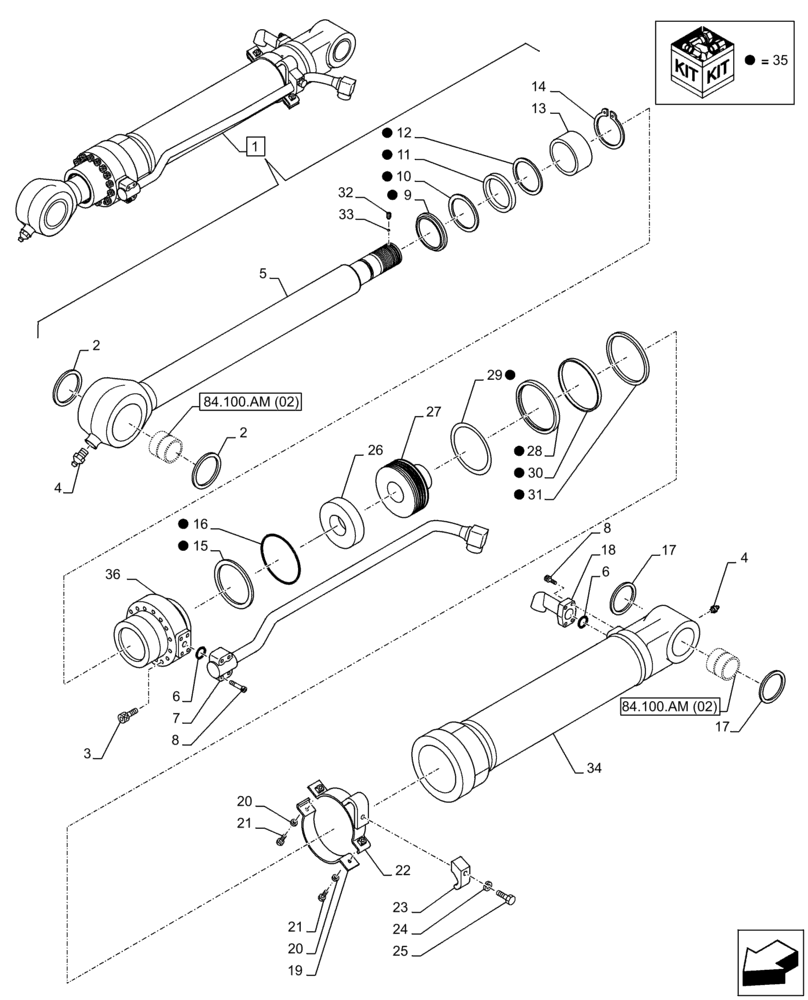

Запчасти Case CX300D LC (35.738.AA[02]) - VAR - 481850, 481243, 781180 - BUCKET CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KBV13620

BUCKET CYLINDER

ASSY, Incl 2 - 36

1шт.

See Also Figure 84.100.AM(02)

1шт.

1

KBV13620R

REMAN-HYD CYLINDER

1шт.

1

KBV13620C

CORE-HYD CYLINDER

Return Number

1шт.

2

LE00951

WIPER SEAL

2шт.

3

166094A1

BOLT,Hex Skt, M18 x 80mm

12шт.

4

153630A1

LUBE NIPPLE

2шт.

5

LZ008500

HYD CYL SLEEVE

1шт.

6

154528A1

O-RING

2шт.

7

LR015800

HYD TUBE

1шт.

8

87016471

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

9

LE019450

BACK-UP RING

1шт.

10

155249A1

BACK-UP RING

1шт.

11

LE015000

O-RING

1шт.

12

LE014990

SEALING RING

1шт.

13

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

15

159994A1

BACK-UP RING

1шт.

16

154777A1

O-RING

1шт.

17

160483A1

BACK-UP RING

2шт.

18

LK00289

TUBE

1шт.

19

LD001860

BAND

1шт.

20

156227A1

WASHER

2шт.

21

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

2шт.

22

LD001610

CLAMP BRACKET

1шт.

23

155717A1

COLLAR

1шт.

24

892-10012

LOCK WASHER,M12

1шт.

25

628-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9, Full Thd

1шт.

26

LE015030

SEALING RING

1шт.

27

LJ015220

PISTON

1шт.

28

159961A1

SEALING RING

1шт.

29

159995A1

BACK-UP RING

2шт.

30

LE015310

WIPER SEAL

2шт.

31

160016A1

RING

2шт.

32

156228A1

SET SCREW

1шт.

33

155981A1

BALL

1шт.

34

LZ008510

PISTON ROD

1шт.

35

LZ011070

SEAL KIT

1шт.

36

NSS

NOT SOLD SEPARAT

Cylinder Head, Incl in 1

1шт.
