(35.737.BC[03]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES

Запчасти Case CX300D LC (35.737.BC[03]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

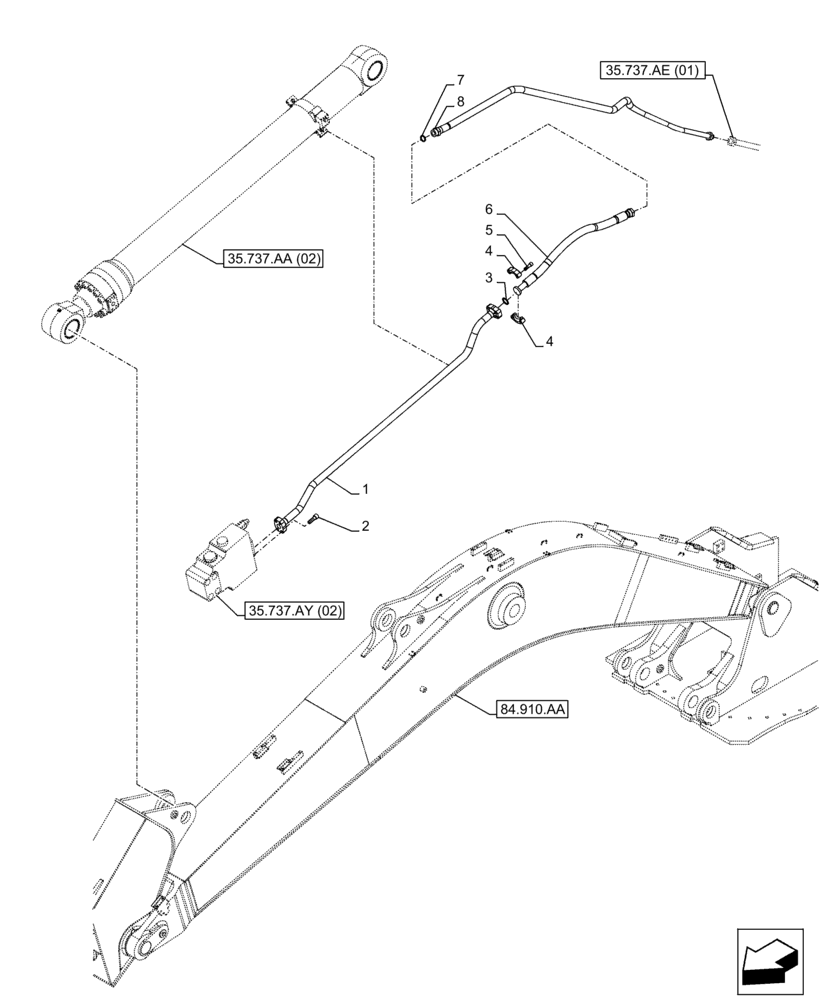

Схема запчастей Case CX300D LC - (35.737.BC[03]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS
3
4
1
5
35.737.ae (01)
8
4
6
2
84.910.aa
35.737.aa (02)
35.737.ay (02)
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV35830

PIPE

M12 x 35mm

1шт.

2

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

3

155211A1

O-RING

1шт.

4

150561A1

FLANGE

2шт.

5

862-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

M12 x 40mm

4шт.

6

KBV32320

HYDRAULIC HOSE

25mm ID x 950mm

1шт.

7

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

8

KBV32341

PIPE

1шт.
