(35.737.BC[02]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES

Запчасти Case CX300D LC (35.737.BC[02]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

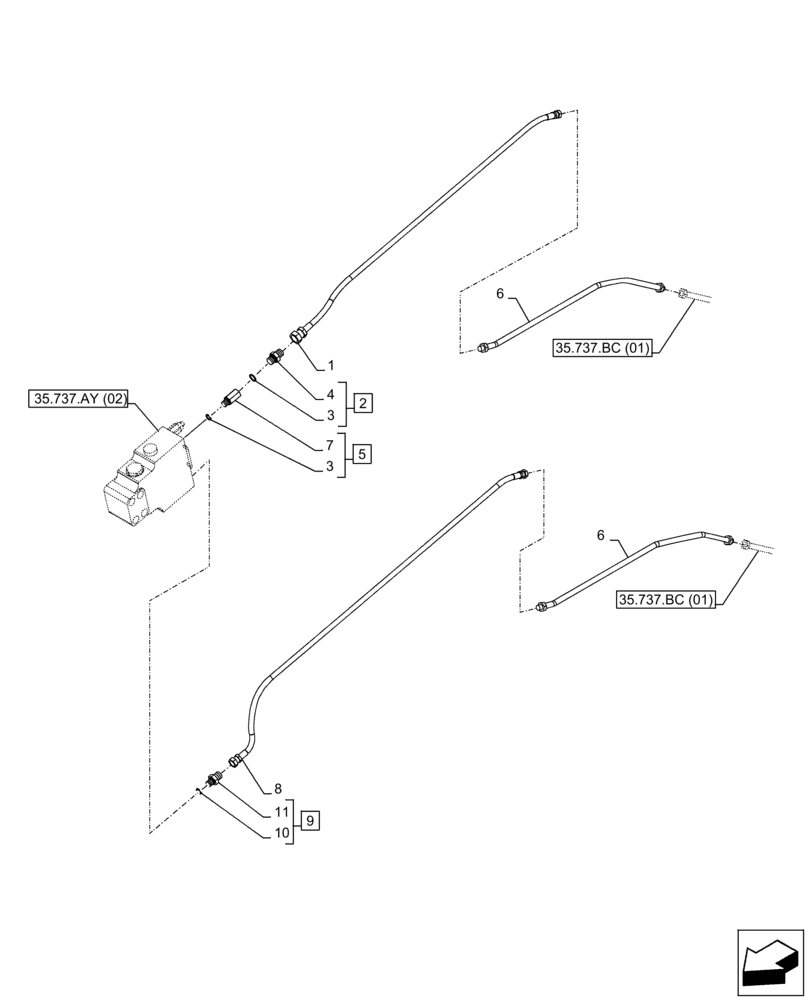

Схема запчастей Case CX300D LC - (35.737.BC[02]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS
35.737.ay (02)
5
35.737.bc (01)
3
3
10
8
6
4
11
7
1
9
2
6
35.737.bc (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ16320

HYDRAULIC HOSE

1шт.

2

152747A1

ADAPTER

ASSY, Incl 3, 4

1шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

4

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

1шт.

5

162525A1

STUD

ASSY, Incl 3, 7

1шт.

6

KBV15080

HYD TUBE

2шт.

7

NSS

NOT SOLD SEPARAT

Stud, Incl in 5

1шт.

8

KHJ16330

HYDRAULIC HOSE

1шт.

9

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 10, 11

1шт.

10

150031A1

O-RING,10mm ID x 24mm OD

1шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.
