(35.737.AE[02]) - VAR - 481064 - ARM, CYLINDER, LINE, SAFETY VALVE

Запчасти Case CX300D LC (35.737.AE[02]) - VAR - 481064 - ARM, CYLINDER, LINE, SAFETY VALVE (35) - HYDRAULIC SYSTEMS

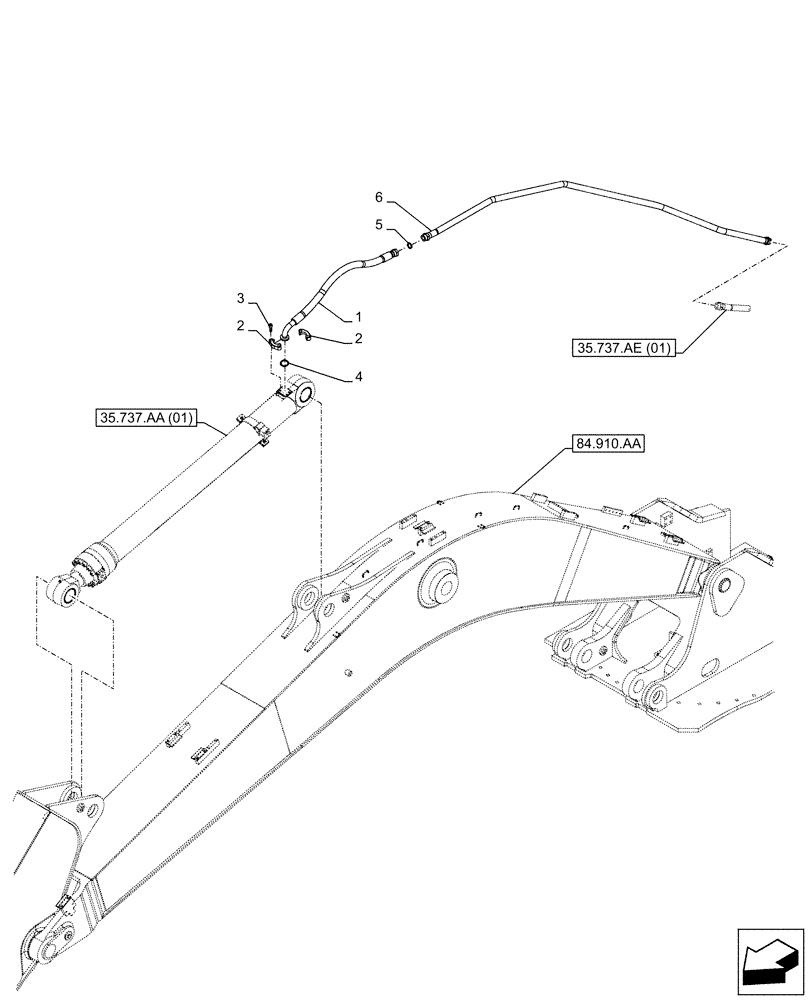

Схема запчастей Case CX300D LC - (35.737.AE[02]) - VAR - 481064 - ARM, CYLINDER, LINE, SAFETY VALVE (35) - HYDRAULIC SYSTEMS
84.910.aa
6
4
2
3
5
35.737.ae (01)
2
35.737.aa (01)
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV35820

HYDRAULIC HOSE

25mm ID x 950mm

1шт.

2

150561A1

FLANGE

2шт.

3

862-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

M12 x 40mm

4шт.

4

162246A1

O-RING

1шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

6

KBV32351Y2

TUBE

1шт.
