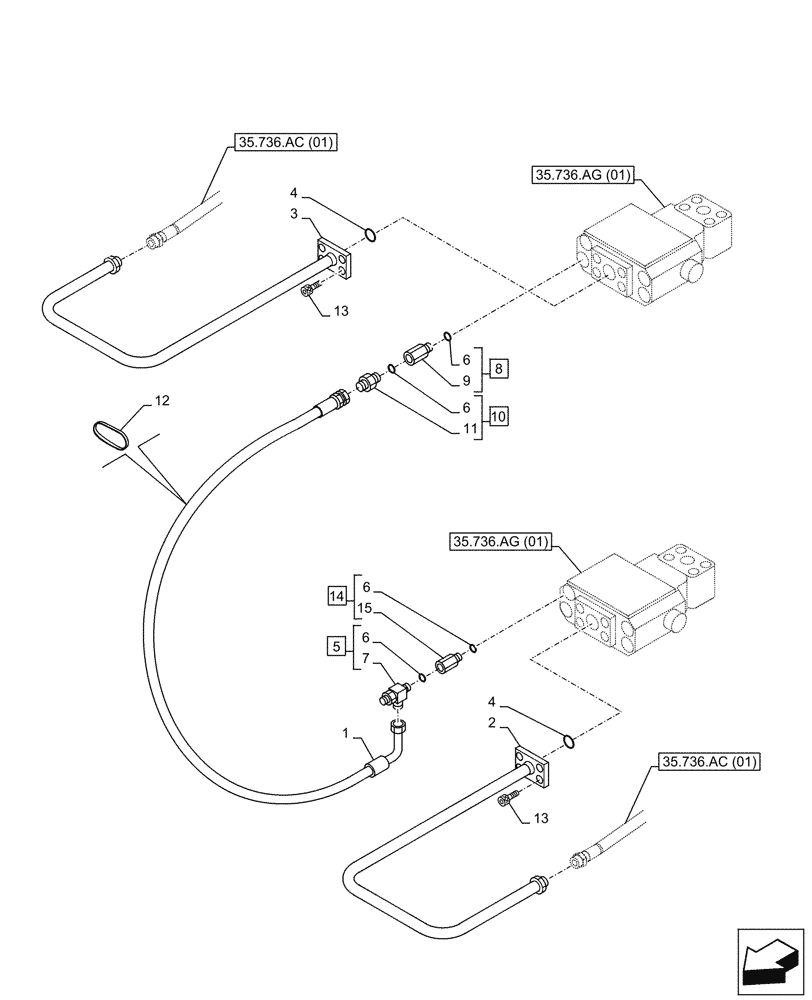

Запчасти Case CX300D LC (35.736.AK[03]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

KHJ15360

HYDRAULIC HOSE

9mm ID x 1200mm

1шт.

2

KBV15150

HYD TUBE

1шт.

3

KBV15160

HYD TUBE

1шт.

4

155210A1

O-RING

2шт.

5

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, Incl 6 (Qty 1), 7, Serial Range: -C0327

1шт.

5

162827A1

TEE

ASSY, Incl 6 (Qty 1), 7, Start Serial: D0327

1шт.

6

154475A1

O-RING

, Serial Range: -C0327

1шт.

(Q.ty 1) for PN 164107A1

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

(Q.ty 3) for PN 164107A1; (Q.ty 4) for PN 162827A1

1шт.

7

NSS

NOT SOLD SEPARAT

Tee G3/8", Incl in 5

1шт.

8

162525A1

STUD

ASSY, Incl 6 (Qty 1), 9

1шт.

(Q.ty 1) for PN 164107A1; (Q.ty 2) for PN 162827A1

1шт.

9

NSS

NOT SOLD SEPARAT

Stud G1/4" x G1/4", Incl in 8

2шт.

(Q.ty 1) for PN 164107A1; (Q.ty 2) for PN 162827A1

1шт.

10

152747A1

ADAPTER

ASSY, Incl 6 (Qty 1), 11

1шт.

11

NSS

NOT SOLD SEPARAT

Fitting G1/4" x G3/8", Incl in 10

1шт.

12

150067A1

MOUNTING CLIP

4шт.

13

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

M10 x 35mm

8шт.

14

KHJ1584

UNION

ASSY, Incl 6 (Qty 1), 15, Start Serial: D0327

1шт.

15

NSS

NOT SOLD SEPARAT

Fitting, Incl in 14

1шт.
