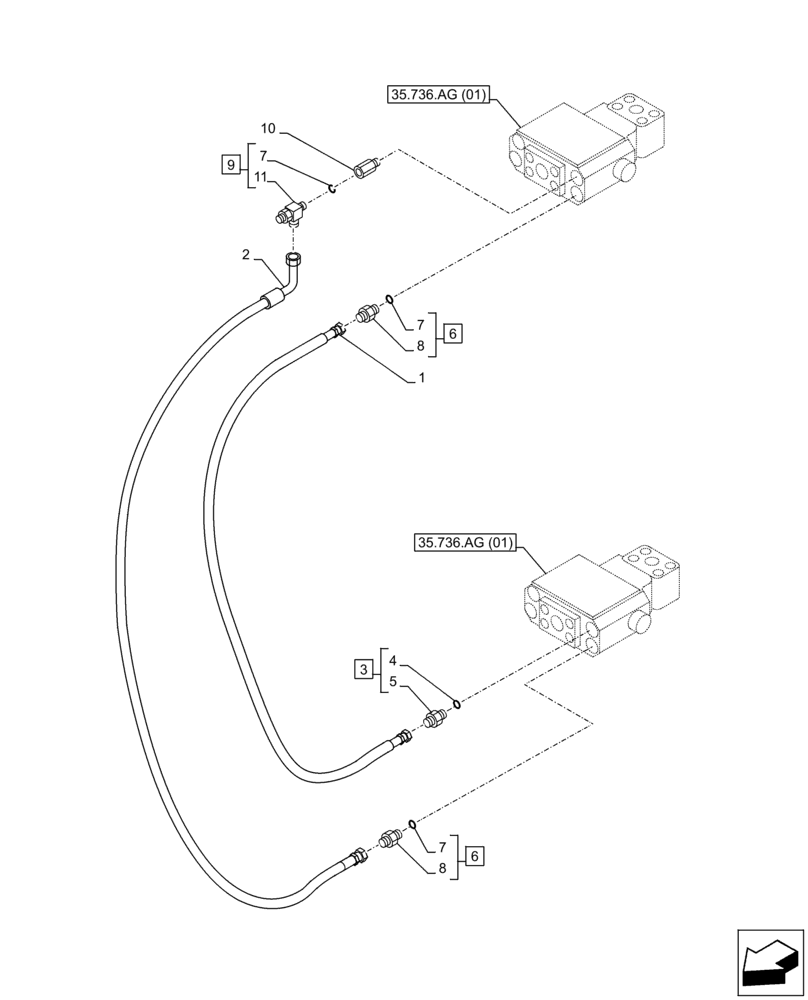

Запчасти Case CX300D LC (35.736.AK[02]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

KBV15170

HYDRAULIC HOSE

1200mm

1шт.

2

KHJ15360

HYDRAULIC HOSE

9mm ID x 1200mm

1шт.

3

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 4, 5

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

1шт.

6

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 7, 8

2шт.

7

154475A1

O-RING

3шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

2шт.

9

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, Incl 7, 11

1шт.

10

KHV0373

STUD

1шт.

11

NSS

NOT SOLD SEPARAT

Tee, Incl in 9

1шт.
