(35.736.AK[01]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINE

Запчасти Case CX300D LC (35.736.AK[01]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS

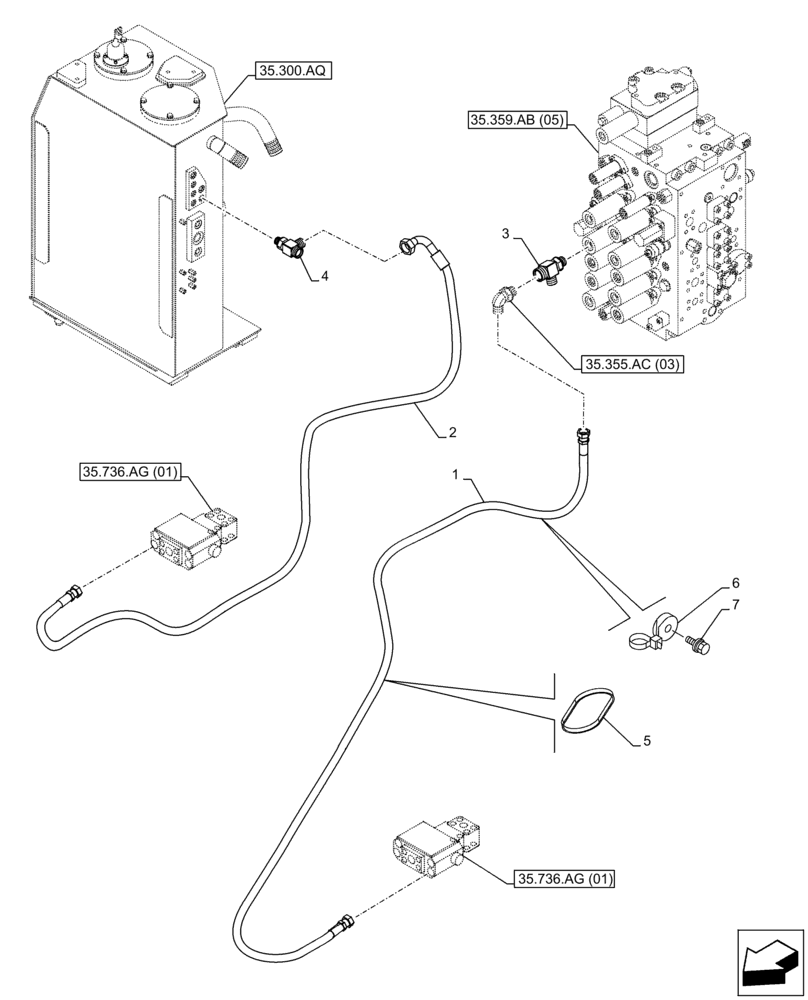

Схема запчастей Case CX300D LC - (35.736.AK[01]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS
4
35.355.ac (03)
7
1
6
35.736.ag (01)
35.359.ab (05)
35.300.aq
2
3
5
35.736.ag (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ34070

HYDRAULIC HOSE

9 x 3350mm

1шт.

2

KHJ33850

HYDRAULIC HOSE

9 x 3500mm

1шт.

3

KHJ31880

TEE

G3/8"

1шт.

4

KHJ11560

TEE

G1/4" x G3/8" x G1/4"

1шт.

5

150496A1

MOUNTING CLIP

24шт.

6

KHR2584

CLAMP

1шт.

7

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

Выбрано товаров: 7
