(35.736.AG[01]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, MOUNTING

Запчасти Case CX300D LC (35.736.AG[01]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, MOUNTING (35) - HYDRAULIC SYSTEMS

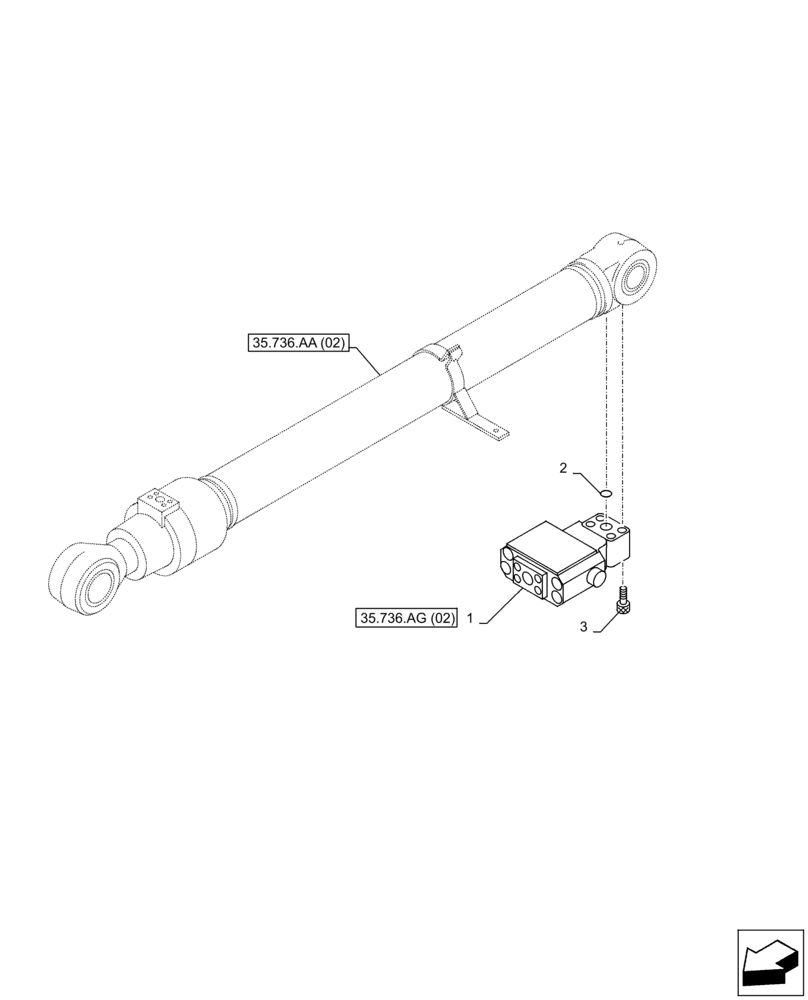

Схема запчастей Case CX300D LC - (35.736.AG[01]) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, MOUNTING (35) - HYDRAULIC SYSTEMS
1
35.736.aa(02)
35.736.ag (02)
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRV11110

VALVE SECTION

ASSY

2шт.

2

155210A1

O-RING

2шт.

3

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

4шт.

Выбрано товаров: 3
